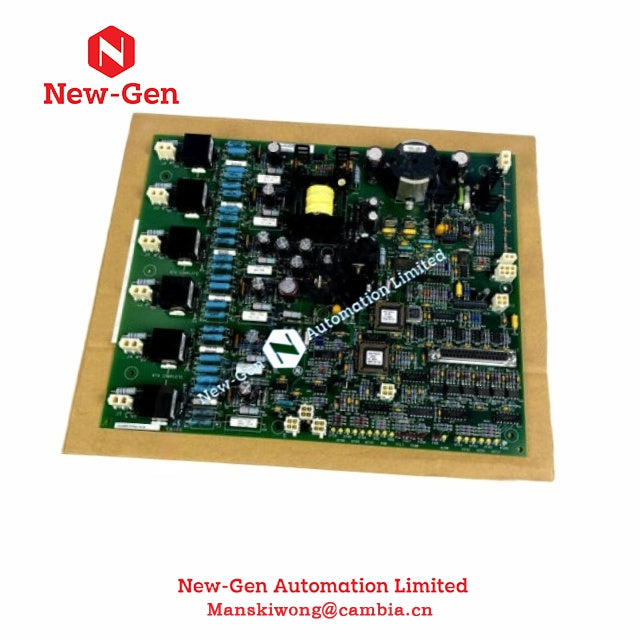

IS200EHPAG1DAB GE High Voltage Gate Pulse Amplifier
Technical specifications
Manufacturer: GE General Electric
Condition：New with Original Package
Product Type: Exciter De-Excitation Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
By submitting a request for this item, you confirm that you have reviewed and accepted our Terms & Conditions. Please note that all transactions will be processed offline.
Ask an expert
Help us reach more people! Share this product with your network and show your support!
Product Description
The IS200EHPAG1DAB is a High Voltage Gate Pulse Amplifier Module designed as part of the GE Mark VIe and EX2100e IGBT-based control systems. This board serves a critical function in safely driving and isolating the gate signals of Insulated Gate Bipolar Transistors (IGBTs) used in high-power inverter and converter systems.
The IS200EHPAG1DAB receives fiber-optic logic signals and converts them into amplified electrical gate pulses, ensuring reliable, fast switching of power semiconductors while maintaining galvanic isolation. Its high-voltage design, fault-handling capabilities, and robust construction make it ideal for demanding power generation and industrial drive applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | IS200EHPAG1DAB |
| Board Function | High-voltage gate drive pulse amplifier |
| Input Signal | Fiber optic (gate ON/OFF) from VME controller or DSP board |
| Output | Gate pulses to IGBT module (±15V to ±20V typical) |
| Isolation Voltage | >2500 VDC (between input logic and output gate drive) |
| Fault Detection | Desaturation, overtemperature, gate undervoltage |
| Feedback | Fault signal via return fiber or wired status line |
| Operating Temperature | –40°C to +70°C |
| Mounting Style | Panel or chassis mount |
| Protection | Conformal coating; onboard fusing |
Other Attributes
- Series: Mark VI IS200
- Country of Origin: USA
- Lead Time: In Stock, 2 Working Days
