Product DescriptionTechnical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |

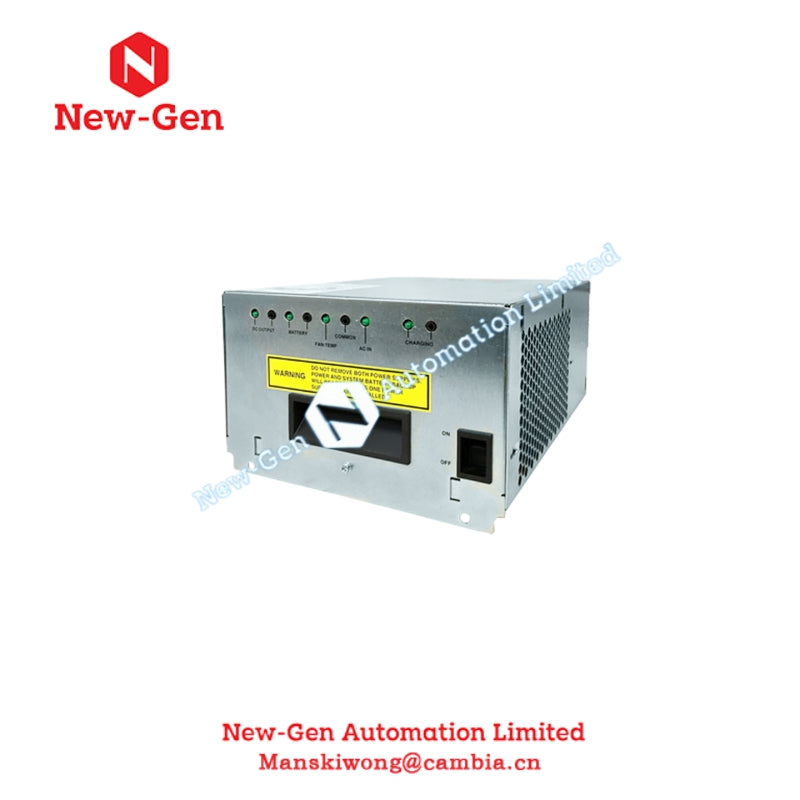

| Model | SPS5785 51198651-100 |
| Module Type | Power Supply Module |
| Input Voltage | 85–264 V AC, 47–63 Hz |
| Output Voltage | 24 V DC nominal |
| Output Current | 10 A maximum |
| Power Rating | 240 W typical |
| Redundancy Support | Yes, parallel operation possible |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 10%–90%, non-condensing |
| Dimensions (W × H × D) | 125 mm × 45 mm × 150 mm |
| Weight | Approx. 0.9 kg |
| Mounting Type | DIN-rail or panel mount |
| Protection | Overload, overvoltage, and short-circuit protection |
FAQ
Q1: Is the SPS5785 51198651-100 brand new and factory-sealed?
Yes, every SPS5785 51198651-100 unit is 100% original Honeywell product, brand new and sealed.
Q2: What input voltage range does this module support?
It accepts 85–264 V AC at 47–63 Hz, allowing flexible global operation.
Q3: Can this power supply module operate in high-temperature environments?
Yes, it functions reliably from 0°C to +55°C and can be stored up to +70°C.
Q4: Does it provide protection against short circuits?
Absolutely, it includes overload, overvoltage, and short-circuit protection.
Q5: How fast can you ship the product?
Our team typically ships within 3–14 business days, depending on stock and order size.
