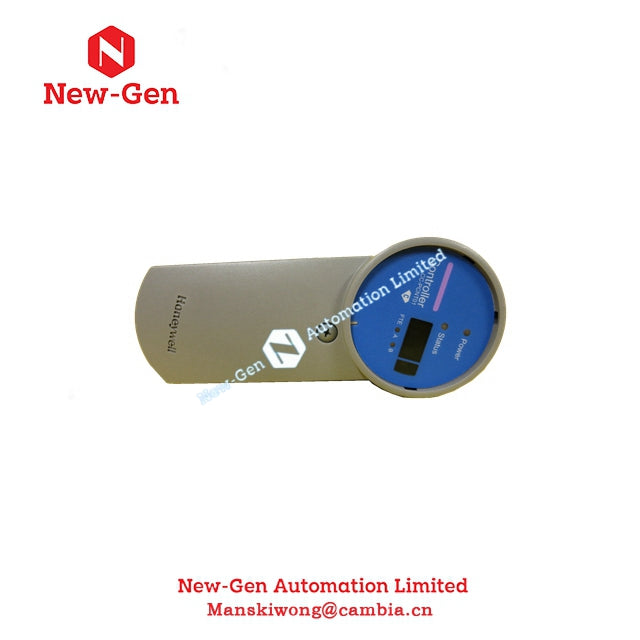

Honeywell CC-PAIX02 High-Level Analog Input Module In Stock with Factory Sealed

Honeywell CC-PAIX02 High-Level Analog Input Module In Stock with Factory Sealed


  • Manufacturer: Honeywell

  • Part Number: CC-PAIX02

  • Condition:New with Original Package

  • Product Type: High-Level Analog Input

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months


Product Description

The Analog Input Module accepts high level current or voltage inputs from transmitters and sensing devices.


Notable Features
• Extensive self-diagnostics
• Optional redundancy
• Supplies non-incendive field power

Detail Specifications -Analog Input
Paramete Specification
Input /Output Model CC-PAIX02 -High-Level Analog Input

OTA Models
Non-Redundan Redundan
CC-TAIX01 CC-TAIX11
CC-GAIX21 CC-GAIX11
CC-TAID01 CC-TAlD11
Input Type Voltage,current (2-wire or self-powered transmitters)
Input Channels 16 Channels (12 Single Ended /4 Differential
Common Mode Rejection Ratio,dc to 60 Hz(500 Ω
source imbalance)
70 dB
Common Mode Voltage,dc to 60 Hz -6 to +5 V peak
A/D Converter Resolution 16 bits
nput Range 1 0 to 5V,1 to 5V,0.4 to 2 V,4-20 mA(through 250 Ω)
Normal Mode Rejection Ratio,at 60 Hz 19 dB
Normal Mode Filter Response Single-pole RC,-3 dB @6.5 Hz
Maximum Normal Mode Input (differential inputs,no
damage)
±30 Volts
Crosstalk,dc to 60 Hz (channel-to-channel) -60 dB
nput Impedance (voltage inputs) >10 M Ω powered
Input Scan Rate 50 ms
Hardware Accuracy (@CMV =0V) ±0.075%of full-scale (23.5°±2°℃
±0.15%of full-scale (0 to 60°℃
Transmitter Field Power Conditioning ndividually Protected Current Limiting Circuits for Class 1,
Div 2 non-incendive interfacing.No fusing required



      Other Attributes

      • Series: Honeywell Experion PKS
      • Country of Origin:  USA
      • Lead Time: In Stock, 2 Working Days
