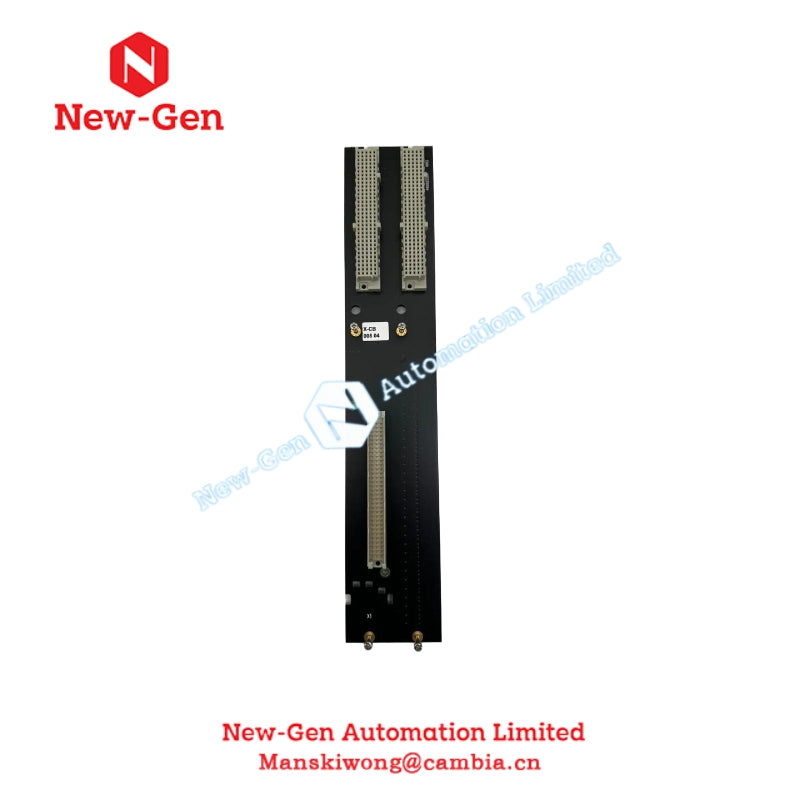

HIMA X-CB00504 X-CB 008 04 Redundant connector board with cable plug
Technical specifications
Manufacturer: HIMA
Condition：New with Original Package
Product Type: Redundant connector board with cable plug
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
By submitting a request for this item, you confirm that you have reviewed and accepted our Terms & Conditions. Please note that all transactions will be processed offline.
Ask an expert
Help us reach more people! Share this product with your network and show your support!
Description
The HIMA X-CB00504 / X-CB00804 redundant connector board provides robust connectivity for HIMax safety and automation systems. Designed to ensure uninterrupted signal transmission, it allows seamless integration of critical I/O modules. Moreover, its high-quality cable plug connectors reduce wiring errors and improve system reliability under demanding industrial conditions.
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Product Type | Redundant connector board with cable plug | For HIMax modules |
| Part Numbers | X-CB00504, X-CB00804 | Industry standard part numbers |
| Compatibility | HIMax X-DI, X-DO, X-AI, X-AO | Supports digital and analog signals |
| Function | Provides redundant field wiring paths | Ensures fail-safe operation |
| Operating Voltage | 24 VDC nominal | Standard industrial control voltage |
| Maximum Current per Channel | 500 mA | Depends on connected module |
| Contact Type | Plug-in screw terminals | Secure, removable connections |
| Redundancy | Dual connection paths | Parallel channels for safety |
| Isolation | Electrically isolated channels | Prevents cross-talk |
| Signal Type | Digital (DI/DO), Analog (AI/AO) | Compatible with multiple signal types |
| Maximum Cable Length | 100 m | Depends on wire gauge and module |
| Mounting | DIN rail or panel mount | Flexible installation options |
| Dimensions | 160 × 100 × 40 mm | Approximate size |
| Weight | 0.45 kg | Light industrial-grade board |
| Housing Material | Flame-retardant plastic | Durable, industrial-rated |
| Operating Temperature | -20°C to +70°C | Suitable for industrial environments |
| Storage Temperature | -40°C to +85°C | Stable in harsh conditions |
| Humidity | 5–95% non-condensing | Standard industrial range |
| Vibration Resistance | IEC 60068-2-6, 5–150 Hz, 1 g | Withstands industrial vibrations |
| Certifications | SIL-compliant per IEC 61508 | Supports safety-rated systems |
| EMC Compliance | EN 61326-1 | Industrial electromagnetic compatibility |
| Environmental Compliance | RoHS, REACH | Meets global environmental standards |
| Number of Channels | 16–32 | Depending on module configuration |
| Cable Cross Section | 0.2–2.5 mm² | Accepts standard industrial wiring |
| Cable Stripping Length | 8–9 mm | Recommended for secure connection |
| Hot-Swappable | Yes | Supports replacement without system shutdown |
| Diagnostics | LED indicators on modules | Channel status monitoring |
| Maintenance Interval | Annual inspection recommended | Ensures long-term reliability |
