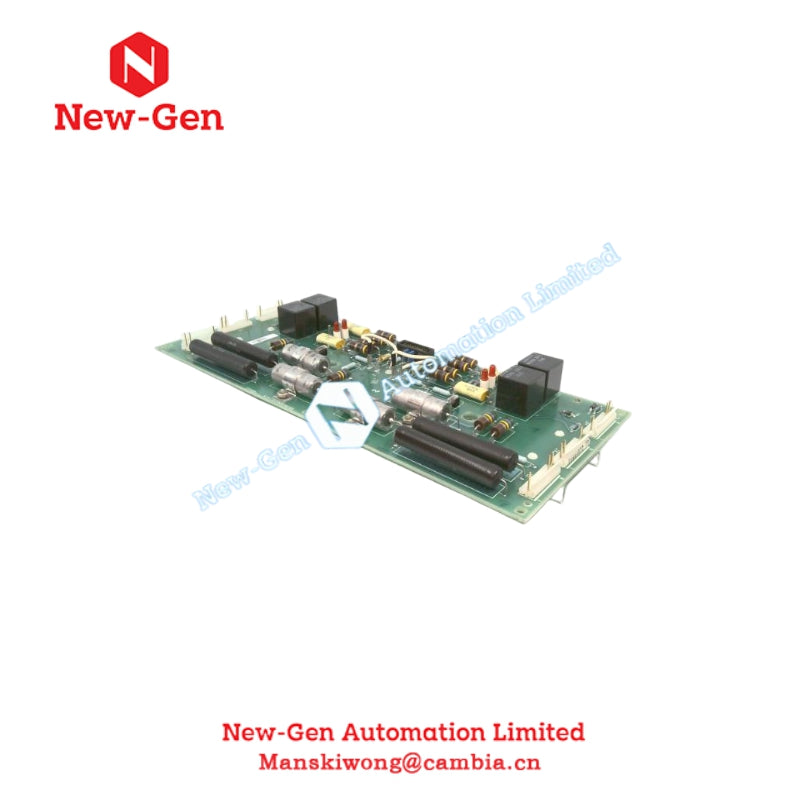

GE fanuc DS3800NHVK1A1A PC BOARD
Technical specifications
Manufacturer: GE General Electric
Condition：New with Original Package
Product Type: PC BOARD
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
By submitting a request for this item, you confirm that you have reviewed and accepted our Terms & Conditions. Please note that all transactions will be processed offline.
Ask an expert
Help us reach more people! Share this product with your network and show your support!
Product Description
The GE Fanuc DS3800NHVK1A1A is a high‑voltage control printed circuit board crafted for GE’s Speedtronic Mark IV turbine control system. It plays a vital role in managing power and signal distribution in high-voltage environments, ensuring stable and reliable operation for critical turbine control functions. Moreover, this board is designed to withstand industrial stress, offering long-term durability for power generation equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DS3800NHVK1A1A |
| Type | High-Voltage Power / Control PCB |
| Series | GE Speedtronic Mark IV DS3800 |
| Function | Controls and distributes high-voltage signals within turbine systems |
| Input Voltage | 120 V AC / DC logic signals for control inputs |
| Output Voltage | Up to 240 V AC for relay outputs and power switching |
| Relay Components | 4 high-current relays for power switching; rated 10 A @ 250 V AC |
| Capacitors | Multiple electrolytic and ceramic capacitors for voltage smoothing and energy storage |
| Diodes | Protection and rectification diodes to prevent backflow and voltage spikes |
| LEDs | Status LEDs for relay activity and power indication |
| Connectors | Multi-pin high-current and logic connectors; plug-in style for rack installation |
| Isolation | Signal isolation between low-voltage logic and high-voltage circuits for safety |
| Operating Temperature | –40 °C to +85 °C |
| Storage Temperature | –55 °C to +125 °C |
| Humidity Tolerance | Up to 95% RH non-condensing |
| Mounting | Rack-mounted within Mark IV chassis; standard DIN rail compatible |
| Dimensions | 100 mm × 80 mm × 20 mm |
| Weight | Approximately 0.2 kg |
| Compliance | Meets GE Mark IV internal quality and reliability standards |
| Expected Lifespan | >10 years under normal industrial operating conditions |
| Environmental Protection | Designed for industrial environments; resilient to vibration and electrical noise |
| Recommended Handling | ESD-safe handling procedures; avoid touching circuitry directly |
| Maintenance | Periodic visual inspection of relays, connectors, and LEDs; replace worn components as needed |
FAQ
Q1: What system is the DS3800NHVK1A1A designed for?
It is specifically designed for GE’s Speedtronic Mark IV turbine control system.
Q2: What is the operating temperature range?
It supports –40 °C up to +85 °C.
Q3: How does this board protect sensitive logic from high-voltage circuits?
It uses isolation circuitry, conditioning components, and robust relay design to maintain logic integrity.
Q4: Can this board be replaced in existing Mark IV racks?
Yes — it is compatible with existing Mark IV control chassis and modules.
Q5: What kind of maintenance does it require?
Use anti-static practices when handling; check connectors, relays, and LEDs for signs of wear or corrosion.
Other Attributes
- Series: Mark VI IS200
- Country of Origin: USA
- Lead Time: In Stock, 2 Working Days
