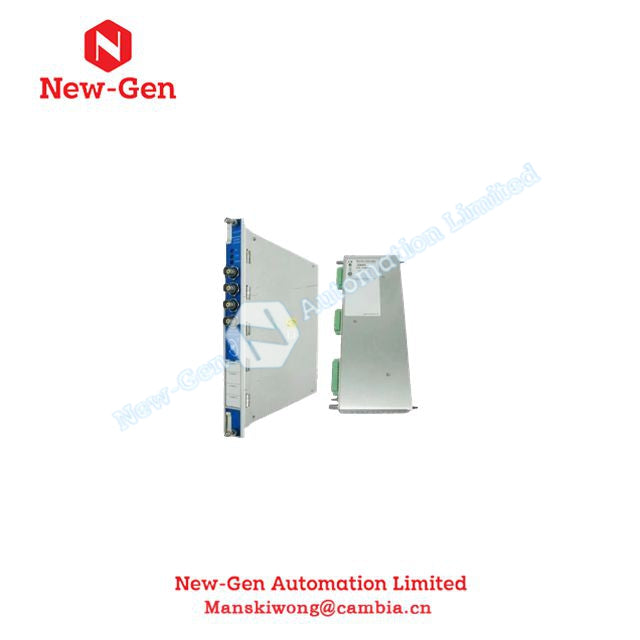

Product DescriptionTechnical Specifications
| Parameter | Specification |
|---|---|
| Model | 133442-01 |
| Module Type | I/O Module with Internal Terminations |
| Input Channels | 2 |
| Input Types | Proximity Probes, Magnetic Pickups |
| Input Voltage Range | -24 V to +10 V |
| Input Impedance | 20 kΩ (Standard), 40 kΩ (TMR) |
| Speed Range | 0–99,999 RPM |
| Frequency Range | 0.0167 Hz–20 kHz |
| Phase Accuracy | ±0.5° |
| Power Supply | 18–36 VDC |
| Power Consumption | 4.5 W (Typical) |
| Operating Temperature | -30°C to +65°C |
| Termination | Internal Terminations (Integrated) |
| Communication | Modbus TCP/IP (Via Gateway) |
| Certifications | API 670, ATEX, SIL 2 |
| Hazardous Area Approval | None |
FAQ
Q: What is the power consumption of the 3500/50-01-00 133442-01 module?
A: The module has a typical power consumption of 4.5 W.
Q: Can the module be configured for different monitoring applications?
A: Yes, the module supports various configurations such as Speed Monitoring, Setpoint Alarming, Speed Band Alarming, Zero Speed Notification, Rotor Acceleration Alarming, and Reverse Rotation Notification.
Q: Does the module support communication with other systems?
A: Yes, the module supports Modbus TCP/IP communication, allowing integration with other systems.
Q: What certifications does the module have?
A: The module is certified for API 670, ATEX, and SIL 2.
Q: What is the operating temperature range of the module?
A: The module operates within a temperature range of -30°C to +65°C.
