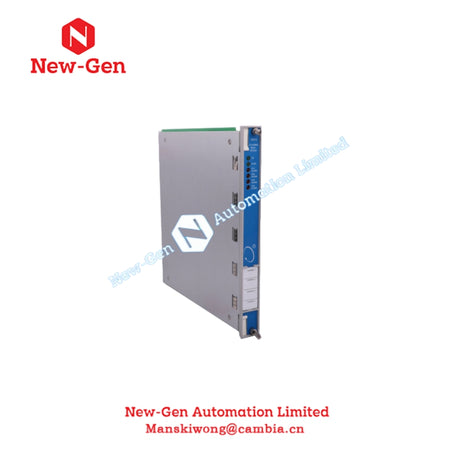

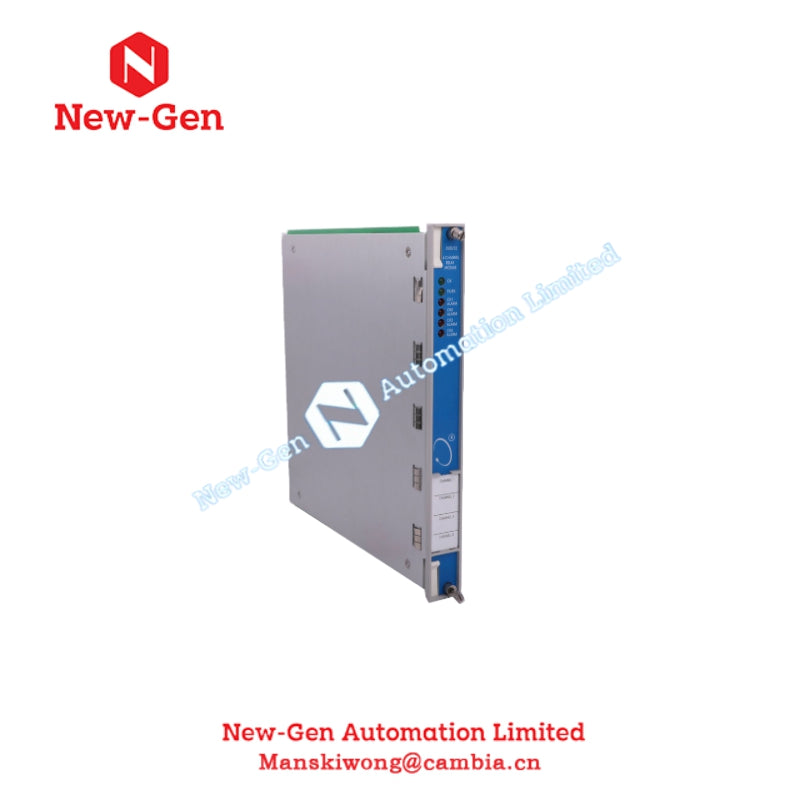

Product DescriptionTechnical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/32 |
| Part Number | 125712-01L |
| Channels | 4 independent relay outputs |
| Function | Alarm and trip relay control |
| Relay Type | Electromechanical (Form C SPDT) |
| Contact Rating | 5 A at 30 VDC or 250 VAC (resistive load) |
| Relay Configuration | Programmable voting logic (AND, OR, Time Delay) |
| Alarm Drive Sources | Any channel or system event within the 3500 rack |
| Trip Multiply Feature | Yes, via system control input |
| OK Channel Drive | Configurable to suppress relay action during fault |
| Power Supply | Provided via 3500 rack backplane |
| Operating Temperature | -30 °C to +65 °C |
| Mounting | 3500 rack, single-slot module |
| Isolation Voltage | 1500 V RMS between channels and system ground |
| Compliance | CE, CSA, ATEX, and API 670 compliant |
| Configuration Software | Bently Nevada 3500 Configuration Software |
| Diagnostics | Continuous self-check and LED indication |
FAQ
Q1: What is the primary function of the Bently Nevada 3500/32 module?
A1: It provides programmable relay outputs for alarm and trip control based on monitored system parameters.
Q2: How many relay channels are available?
A2: The module includes four independent relays, each programmable with custom logic.
Q3: Can the relays be configured for different alarm logic?
A3: Yes, users can set up AND, OR, and Time-Delay logic for each relay output.
Q4: Is the 3500/32 compatible with other 3500 modules?
A4: It integrates seamlessly with all monitoring modules in the 3500 system rack.
Q5: What standards does the module comply with?
A5: It meets API 670, CE, CSA, and ATEX standards for industrial safety and reliability.
