Product DescriptionTechnical Specifications
| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (General Electric) |

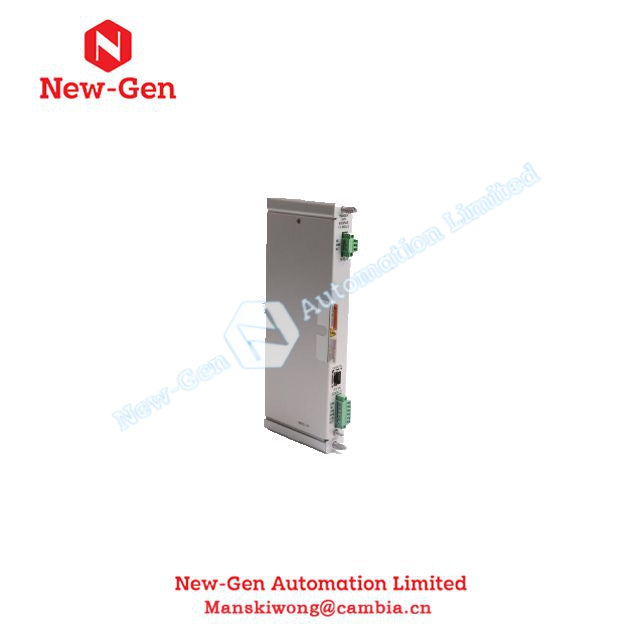

| Model | 3500/22M-01-01-00146031-01 |
| Type | Transient Data Interface (TDI) I/O Module |
| Power Consumption | 10.5 Watts |
| Data Inputs | Front Panel USB-B, 10Base-T/100Base-TX Ethernet (autosensing), 100Base-FX Fiber-Optic Ethernet |
| Outputs | Front Panel LEDs: OK, TX/RX, TM, CONFIG OK |
| I/O Module OK Relay | Indicates rack operation status; user-selectable OPEN or CLOSED contact; Normally Energized |
| OK Relay Ratings | 5A @ 24 Vdc/120 Vac, 120 Watts/600 VA max; gold-plated contacts rated 1 mA @ 1 Vdc minimum |
| Arc Protection | Arc suppressors included |
| Controls | Front panel rack reset button; address switch (127 possible addresses); configuration keylock (RUN or PROGRAM mode) |
| Transient Data Interface Type | Standard for monitoring applications |
| I/O Module Type | 10Base-T/100Base-TX Ethernet |
| Agency Approval | None |
| Mounting | 3500/22M Rack |
| Connectivity | Extension cable support, USB connectivity |
| Compatibility | 3500 and 3300 monitoring systems |
| Dimensions | Standard 3500/22M module size |
| Operating Temperature | Industrial range |
| Weight | Lightweight for easy installation |
FAQ
Q1: Is the module brand new?
A1: Yes, the 3500/22M-01-01-00146031-01 module is 100% original and factory-sealed.
Q2: What is the typical delivery time?
A2: Inventory is available, and shipment occurs within 3 days to 2 weeks depending on order size.
Q3: Which logistics carriers are commonly used?
A3: We typically use DHL, FedEx, and UPS for global shipping.
Q4: Can I return the module if there is a defect?
A4: Yes, we support returns within 30 days for quality-related issues.
Q5: Is this module compatible with 3300 monitoring systems?
A5: Yes, the 3500/22M-01-01-00146031-01 integrates with both 3500 and 3300 Bently Nevada systems for data acquisition.
