Bently Nevada 3500/22-01-01-00 138607-01 Standard Transient Data Interface Module

Product Description

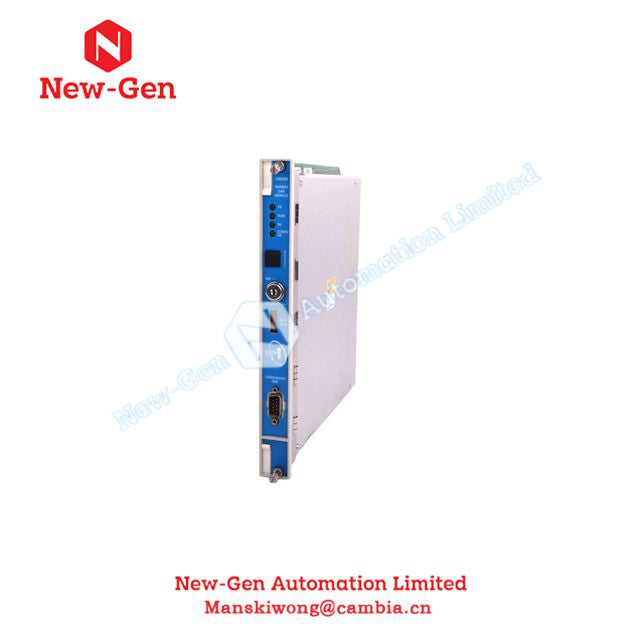

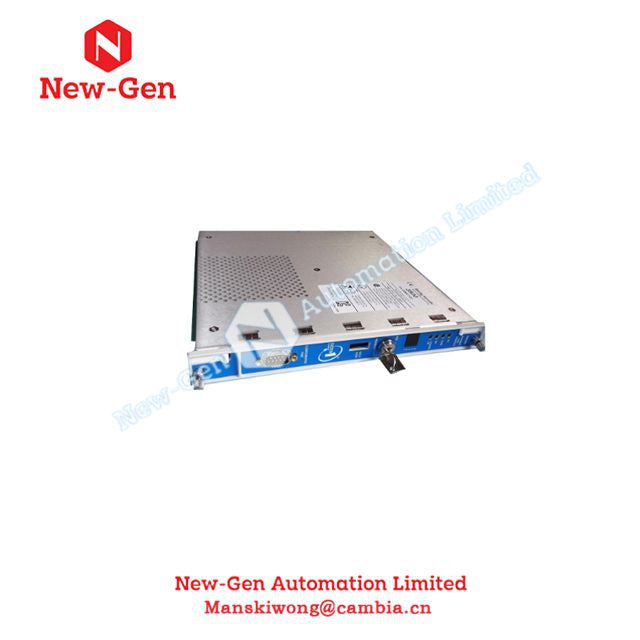

The Bently Nevada 3500/22-01-01-00 (P/N 138607-01) is a Standard Transient Data Interface (TDI) Module, functioning as the primary interface between the 3500 Monitoring System and external communication systems. It seamlessly combines the capabilities of a System Monitor and a communication gateway, delivering real-time and transient data to System 1® software and other asset management platforms.

This module is essential for modern condition monitoring strategies, offering high-speed data capture, robust diagnostics, and powerful integration tools—ideal for turbine generators, compressors, pumps, and other critical rotating assets.

The 3500 Transient Data Interface (TDI) is the interface between the 3500  monitoring system and GE’s System 1® machinery management software. The  TDI combines the capability of a 3500/20 Rack Interface Module with the data  collection capability of a communication processor such as TDXnet.  The TDI operates in the RIM slot of a 3500 rack in conjunction with the M series  monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and  transient waveform data and pass this data through an Ethernet link to the host  software. Static data capture is standard with the TDI, however using an  optional Channel Enabling Disk will allow the TDI to capture dynamic or transient  data as well. The TDI features improvements in several areas over previous  communication processors and incorporates the Communication Processor  function within the 3500 rack.

Technical Specifications

• Power  Consumption： 10.5 Watts
• Data: 115.2 kbaud maximum RS232 serial communications
• OK LED: Indicates when the 3500/22M is  operating properly
• TX/RX LED: Indicates when the 3500/22M is  communicating with the other  modules in the rack.
• TM LED: Indicates when the 3500 rack is in Trip Multiply mode.
• CONFIG OK LED: Indicates that the 3500 rack has a  valid configuration.
• Operating  Temperature: 30 °C to +65 °C (-22 °F to +149 °F)
• Storage  Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Humidity: 95%, non-condensing
• Dimensions (Height x Width x Depth): 241.3 mm x 24.4 mm x 241.8 mm(9.50 in x 0.96 in x 9.52 in)
• Weight: 0.91 kg (2.0 lbs)


Other Attributes

• Series: 3500 System
• Country of Origin: USA
• Lead Time: In Stock, 2 Working Days
