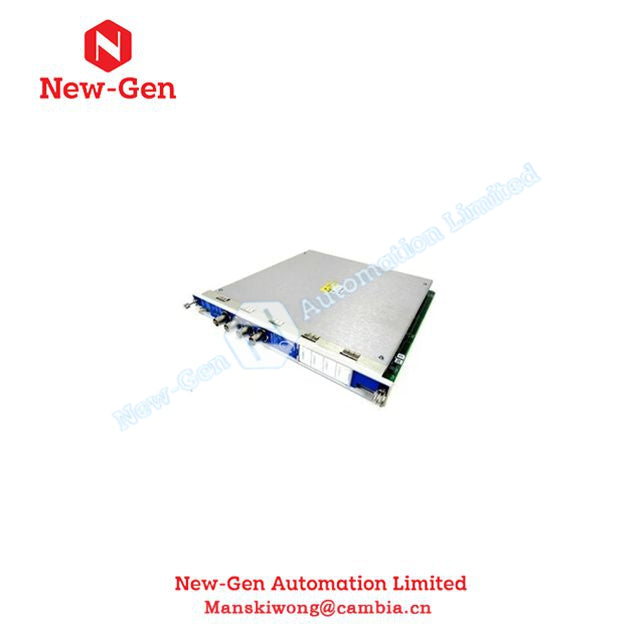

Product DescriptionThe Bently Nevada 1720025 is a 1900/65A General Purpose Equipment Monitor designed for continuous monitoring of machinery vibration and temperature. This module provides real-time diagnostics to improve asset reliability and reduce downtime.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 1720025 |
| Product Type | 1900/65A General Purpose Equipment Monitor |
| Vibration Channels | 4 (configurable for acceleration, velocity, or displacement) |
| Temperature Channels | 4 (supports RTD or thermocouple) |
| Frequency Range | 5 Hz to 10 kHz |
| Power Supply | 18 V DC to 36 V DC |
| Power Consumption | 7.2 W (typical) |
| Analog Output | 4–20 mA per channel |
| Relay Outputs | 6 SPDT, rated 5 A at 250 V AC |
| Update Rate | 100 ms per channel |
| Accuracy | ±1% of full scale |
| Dimensions | 133 mm × 133 mm × 178 mm |
| Weight | 1.2 kg |
| Mounting | DIN rail or panel mount |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Humidity Range | 0% to 95% non-condensing |
| Protection Rating | IP20 |
