Home » ABB DSTV 110 57350001-A Connection Unit For Video
ABB

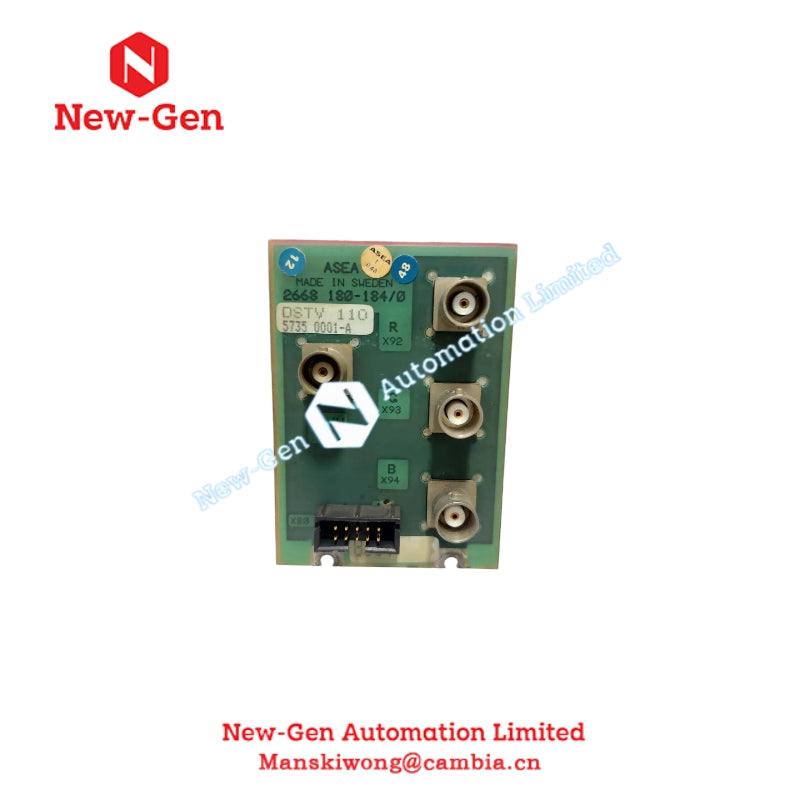

ABB DSTV 110 57350001-A Connection Unit For Video

SKU: DSTV110
(0)

Technical specifications

  • Manufacturer: ABB

  • Condition：New with Original Package

  • Product Type: Connection Unit For Video

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

By submitting a request for this item, you confirm that you have reviewed and accepted our Terms & Conditions. Please note that all transactions will be processed offline.

100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
1-Year Warranty on All Products

Ask an expert

Chat Email +8618030205725

Help us reach more people! Share this product with your network and show your support!

 Description

The ABB DSTV 110 (Part No. 57350001‑A) is a dedicated connection unit designed for video modules in industrial process control systems. It provides a robust and compact physical interface for ABB video boards—specifically the DSAV 110, DSAV 111, or DSAV 112 modules. Thanks to its precise design, the DSTV 110 ensures dependable termination, signal integrity, and a clean layout within control cabinets. Moreover, its small footprint helps optimize space and simplifies wiring. Whether in new installations or system upgrades, this connection unit enhances the reliability and clarity of video signals used for monitoring or control.

Technical Specifications

Parameter Specification Description / Notes
Model / Type DSTV 110 Connection Unit Dedicated interface for ABB video modules (DSAV 110/111/112)
Part Number 57350001‑A ABB official ordering number
Function Video module termination / interface Ensures secure physical and electrical connection for video boards
Compatibility DSAV 110, DSAV 111, DSAV 112 Works with Advant Master / MasterView control systems
Dimensions (D × H × W) 110 mm × 60 mm × 20 mm Compact form factor, saves space in control cabinets
Net Weight 0.055 kg Lightweight for easy handling and installation
Electrical Power Passive unit Requires no separate power source, reducing potential failure points
Interface Type Video signal termination Supports proper signal routing and integrity
Material / Construction Industrial-grade plastics and metal contacts Durable for long-term operation in industrial environments
Mounting Style Panel mount / DIN rail compatible Flexible installation in control cabinets or monitoring panels
Environmental Compliance Not in WEEE scope Meets ABB industrial environmental standards
RoHS Compliance Exempt from certain 2011/65/EU RoHS categories Verified per ABB declaration
Customs / HS Code 85389091 For shipping and import/export purposes
Operating Temperature 0 °C to 55 °C (typical) Suitable for standard indoor industrial environments
Storage Temperature -20 °C to 70 °C Allows safe transportation and warehouse storage
Humidity Tolerance Up to 95% RH, non-condensing Industrial indoor humidity conditions
Reliability Passive, no active electronics Minimal points of failure, high MTBF
Use Case Process monitoring and video interface Ensures clear video feed in control and operator systems



FAQ

Q1: Which video modules is the DSTV 110 compatible with?
A1: It is designed to work with ABB’s DSAV 110, DSAV 111, and DSAV 112 video boards.

Q2: Does the DSTV 110 require its own power supply?
A2: No. This unit is passive and does not require an independent power source.

Q3: Is the DSTV 110 environmentally regulated under WEEE?
A3: This product is not within the WEEE scope.

Q4: What is the weight of the unit?
A4: The net weight is approximately 0.055 kg, making it very light and easy to handle.

Q5: Is the unit RoHS compliant?
A5: The DSTV 110 is exempt from certain parts of the 2011/65/EU RoHS directive, according to ABB’s declaration.





Other Attributes

  • Series: ABB  Other Series
  • Country of Origin:  Germany/Finland/Sweden
  • Lead Time: In Stock, 2 Working Days
