ABB 3BHE009681R0101 3BHB01296R0001 5SHX2645L0002 IGCT Module

SKU: 3BHE009681R0101 3BHB01296R0001 5SHX2645L0002
(0)

Technical specifications

  • Manufacturer: ABB

  • Condition：New with Original Package

  • Product Type: IGCT Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

By submitting a request for this item, you confirm that you have reviewed and accepted our Terms & Conditions. Please note that all transactions will be processed offline.

100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
1-Year Warranty on All Products

Ask an expert

Chat Email +8618030205725

Help us reach more people! Share this product with your network and show your support!

 Description

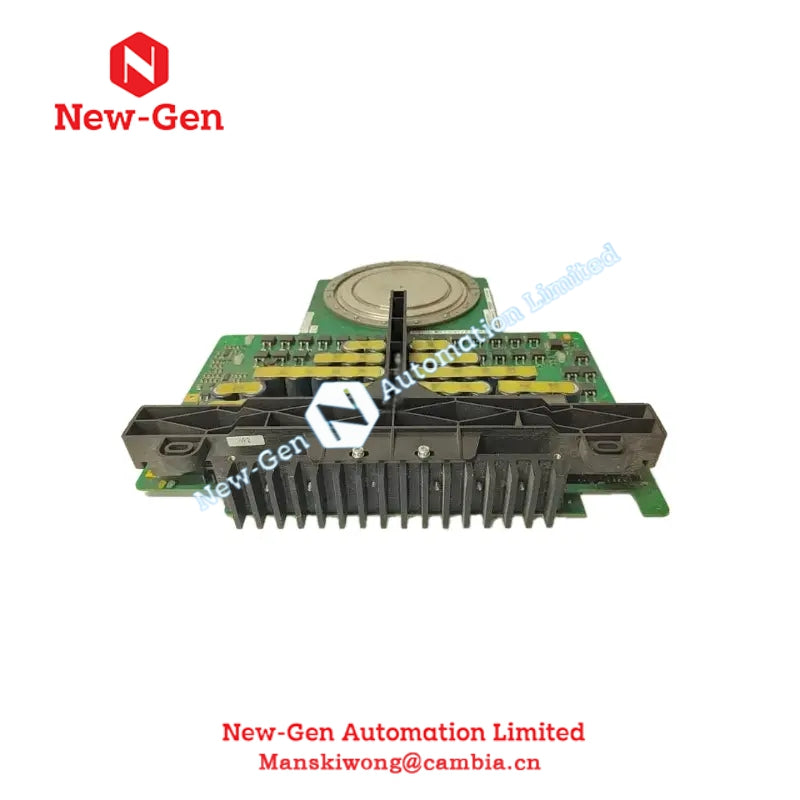

The ABB IGCT module 3BHE009681R0101 / 3BHB01296R0001 / 5SHX2645L0002 is a high-performance industrial power semiconductor designed for efficient and reliable control of medium- and high-voltage power electronics systems. It integrates advanced Insulated Gate Commutated Thyristor (IGCT) technology, offering rapid switching, low conduction losses, and superior thermal stability. Moreover, its robust packaging ensures safe operation in harsh industrial environments, minimizing maintenance requirements.

This IGCT module provides precise control over power conversion systems, including drives, inverters, and rectifiers. Therefore, engineers can achieve optimal energy efficiency and enhanced system reliability. In addition, its modular design enables seamless integration into existing ABB power electronics frameworks, simplifying upgrades and retrofits while maintaining consistent performance.

Technical Specifications

Parameter Specification
Model Numbers 3BHE009681R0101 / 3BHB01296R0001 / 5SHX2645L0002
Module Type IGCT (Insulated Gate Commutated Thyristor)
Voltage Rating Up to 4.5 kV DC / AC peak (depending on configuration)
Current Rating 1200–2500 A RMS (pulse capability available)
Switching Time <5 μs typical
Gate Control Integrated gate drive with fast turn-on/off
Isolation Voltage 5 kV for 1 min (standard)
Operating Temperature –40 °C to +125 °C junction temperature
Storage Temperature –40 °C to +150 °C
Thermal Resistance 0.08 °C/W junction-to-case
Cooling Water-cooled or forced air (application-dependent)
Mounting Standard industrial bus bar and screw terminals
Standards Compliance IEC 60747-2, UL recognized, ABB factory-tested
Expected Lifetime >10 years under normal operating conditions
Application Notes Designed for inverters, choppers, motor drives, and HVDC systems



FAQ

Q: Can this IGCT module handle pulsed high-current applications?
A: Yes, the module is rated for both continuous RMS and pulsed currents with excellent repeatability.

Q: What cooling methods are recommended for this module?
A: Water-cooling or forced air cooling is recommended depending on your application power level.

Q: Is this module compatible with existing ABB drive systems?
A: Yes, it is designed for seamless integration with ABB medium- and high-voltage drives.

Q: What is the expected operational lifetime?
A: Under normal operating conditions, the module can function reliably for over 10 years.

Q: Are gate drives included or required separately?
A: The module includes integrated gate drive for proper IGCT operation; no external gate driver is required.
