Yokogawa | F3AD04-5V | Analog Input Module
Техничке спецификације
Manufacturer: YOKOGAWA
Condition：New with Original Package
Product Type: Analog Input Module
-
Country of Origin: Singapore
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Подношењем захтева за ову ставку потврђујете да сте прегледали и прихватили наше Услове и одредбе . Имајте на уму да ће све трансакције бити обрађене ван мреже.
Питајте стручњака
Помозите нам да допремо до више људи! <стронг>Делите овај производ са својом мрежом и <стронг>покажите подршку!
Product Description

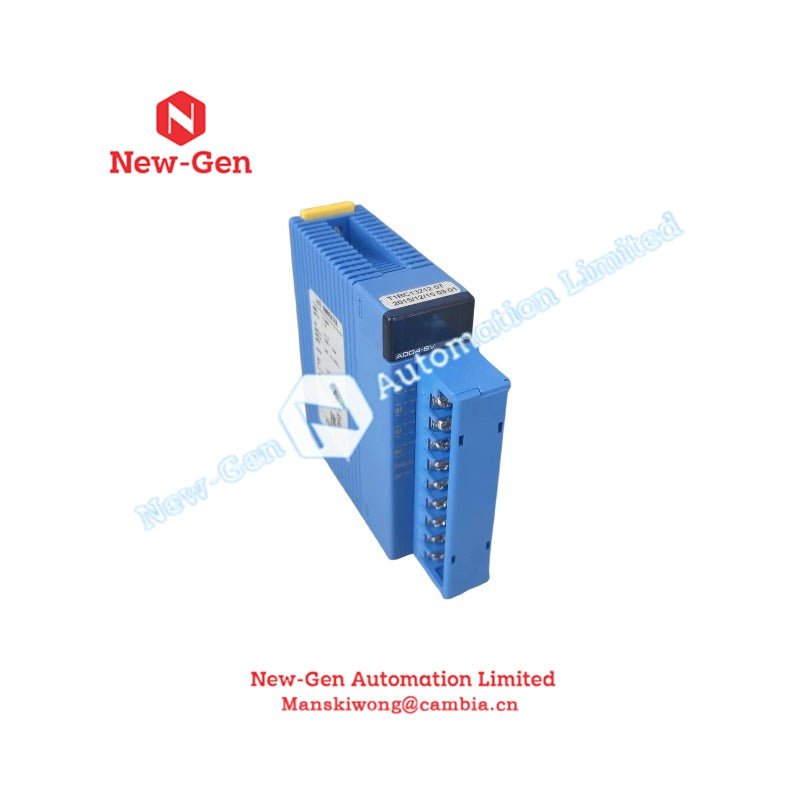

The F3AD04-5V, also cataloged as the F3AD04 analog input module, operates as a dedicated hardware component for high-density analog signal acquisition within industrial programmable logic controller platforms.
Suffix Breakdown & Model Matrix
| Code | Definition |
|---|---|
| F3 | Series prefix indicating compatible base rack system |
| AD | Analog-to-digital input function |
| 04 | Four differential input channels |
| 5V | 5 VDC backplane power supply operation |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F3AD04-5V |
| Brand | F3 Series |
| Origin | Singapore |
| Weight | 200 g |
| Dimensions | 28.9 (W) x 100 (H) x 106.1 (D) mm |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | 210 mA at 5 VDC |
| Number of Inputs | 4 differential inputs |
| Absolute Maximum Rating | +18 VDC or 25 mA DC max; -18 VDC or -25 mA DC min |
| Input Signal Range | Voltage: 0-5 VDC, 1-5 VDC, -10 to 10 VDC, 0-10 VDC; Current: 0-20 mA DC, 4-20 mA DC |
| Conversion Cycle | 1 ms x number of inputs |
| Allowable Common-Mode Voltage | ±6 VDC max (0-5 V, 1-5 V, current modes); ±1 VDC max (-10 to 10 V, 0-10 V) |
| Isolation Method | Photocoupler isolation across input terminals and internal circuit |
| Withstanding Voltage | 500 VDC for 1 minute |
| Input Resistance | 1 MΩ min (voltage), 250 Ω (current) |
| Maximum Resolution | 1.4 mV (0-5 V, 1-5 V, 0-10 V); 5.7 mV (-10 to 10 V); 5.6 µA (current) |
| Overall Accuracy | ±0.2% FS at 23±2 deg C; ±0.5% FS at 0-55 deg C |
| Scaling Range | -30,000 to 30,000 |
| Offset Adjustment | -5,000 to 5,000 |
| Filter | First-order lag or moving average per channel |
| Hold Data | Peak and trough value recording supported |
| Self Diagnosis | Hardware self-test, over-range input detection |
| External Connection | 18-point terminal block, M3.5 screws |
Backplane Bus Communication Characteristics
The module interfaces with the controller backplane via a parallel data bus, executing deterministic scan cycles synchronized to the rack controller’s execution phase. Channel data updates occur without software polling overhead, maintaining consistent input latency across all four differential channels. Firmware flash compatibility is maintained within the F3 series CPU firmware revisions, ensuring stable operation across multiple hardware generations.
Frequently Asked Questions
Q: Does the F3AD04-5V support hot-swap replacement?
A: No. The module must be installed or removed only when the rack power is off to prevent backplane bus contention and potential damage to the input circuitry.
Q: What is the effect of enabling the first-order lag filter on conversion timing?
A: Enabling the filter does not alter the 1 ms per channel conversion cycle but increases digital smoothing latency by one sample period per channel.
Q: Are input terminals individually isolated from each other?
A: No. Isolation is provided between input terminals and the internal circuit via photocouplers, but terminals are not isolated from each other.
Field Installation Guidelines
Mount the module directly onto the 35 mm DIN rail or secure it into the designated rack slot using the supplied retention screws. Torque terminal connections to 0.5 N·m. Use shielded twisted-pair wiring for all analog input signals, grounding the shield at the module end only to prevent ground loops. Maintain a minimum separation of 100 mm between analog input wiring and high-voltage AC conductors to minimize inductive coupling. Verify common-mode voltage limits before energizing the module to avoid permanent input stage damage.
Other Attributes
- Country of Origin: Japan/Singapore
- Lead Time: In Stock, 2 Working Days
