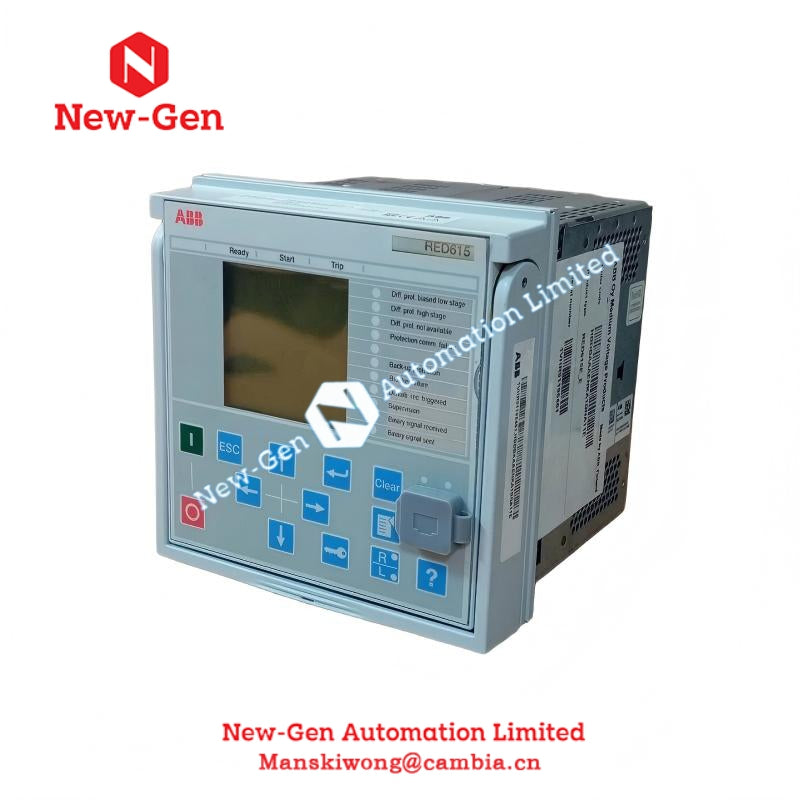

ABB RED615 HCDBAAAEABD2DAA1XD FEEDER PROTECTION RELAY

Артикул: RED615 HCDBAAAEABD2DAA1XD
(0)

Технические характеристики

  • Manufacturer: ABB

  • Condition：New with Original Package

  • Product Type: FEEDER PROTECTION RELAY

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Отправляя запрос на этот товар, вы подтверждаете, что ознакомлены и согласны с нашими Условиями и положениями. Обратите внимание, что все транзакции будут обрабатываться в оффлайне.

100% оригинал и подлинность
100% новый, готов к отправке
Поддержка Возврат, круглосуточное обслуживание 7 дней в неделю
1-летняя гарантия на все продукты

Спросите эксперта

Чат Электронная почта +8618030205725

Помогите нам охватить больше людей! Поделитесь этим продуктом со своими знакомыми и покажите свою поддержку!

 Description

ABB developed the RED615 HCDBAAAEABD2DAA1XD relay within the Relion® 615 protection series for modern distribution automation systems.

The RED615 HCDBAAAEABD2DAA1XD relay provides advanced feeder protection, monitoring, and control functions for medium-voltage distribution networks.
Moreover, engineers integrate RED615 HCDBAAAEABD2DAA1XD devices into substations where reliable fault detection and fast protection responses remain critical.
Additionally, the relay combines protection logic, communication interfaces, and measurement functions within a compact and robust hardware architecture.
Therefore, utilities deploy RED615 HCDBAAAEABD2DAA1XD solutions to increase grid reliability, minimize outage risks, and support intelligent power distribution.

Technical Specifications

Parameter Specification
Model Number RED615 HCDBAAAEABD2DAA1XD
Manufacturer ABB
Product Type Feeder Protection Relay
Product Series Relion® 615 Protection and Control Series
Protection Functions Feeder protection, differential protection, overcurrent protection, fault detection
Rated Auxiliary Voltage 24–250 V DC / 110–240 V AC depending on configuration
Current Inputs Up to 4 current transformer inputs for feeder monitoring
Voltage Inputs Multiple voltage measurement channels for protection calculations
Communication Protocols IEC 61850, Modbus TCP/IP, IEC 60870-5-103
Communication Ports Ethernet RJ45 ports and optional fiber-optic communication interfaces
Local HMI Integrated LCD display with push-button navigation interface
Data Logging Event recording and disturbance recording capability
Housing Dimensions Approx. 177 mm × 177 mm × 149 mm compact relay enclosure
Weight Approximately 1.8–2.2 kg depending on configuration
Mounting Method Flush-mounted or semi-flush mounted in protection panels
Operating Temperature Range −25°C to +55°C continuous operation
Protection Degree IP40 front panel protection for substation control panels
Internal Components Microprocessor unit, communication module, protection logic circuits, measurement transformers



FAQ

Q1: Is the RED615 HCDBAAAEABD2DAA1XD relay brand new and original?
Yes. All RED615 HCDBAAAEABD2DAA1XD units we supply are brand new original factory products.

Q2: Do you keep the RED615 HCDBAAAEABD2DAA1XD in stock?
Yes. We usually maintain available stock for RED615 HCDBAAAEABD2DAA1XD to support urgent industrial orders.

Q3: How long does shipping take after placing an order?
Orders normally ship within 3 days to 2 weeks depending on order size and preparation requirements.

Q4: Which logistics carriers do you usually use?
We commonly ship through reliable international carriers such as DHL and other express logistics providers.

Q5: Which communication protocols does the RED615 relay support?
The RED615 HCDBAAAEABD2DAA1XD relay supports IEC 61850, Modbus TCP/IP, and IEC 60870-5-103 communication standards.
