1769-IQ6XOW4 Allen Bradley Compact I/O Digital Combo Module
Especificações técnicas
Manufacturer: Allen Bradley
Condition：New with Original Package
Product Type: Digital Combination I/O Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Ao enviar um pedido para este item, você confirma que revisou e aceitou nossos Termos & Condições. Por favor, note que todas as transações serão processadas offline.
Pergunte a um especialista
Ajude-nos a alcançar mais pessoas! Compartilhe este produto com sua rede e mostre seu apoio!
Product Description

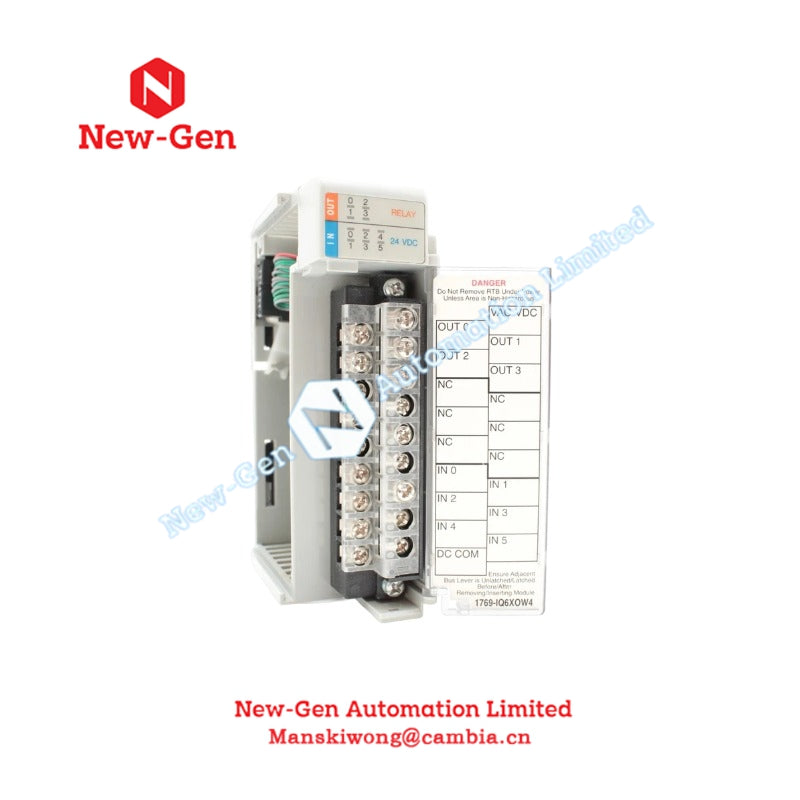

The Allen Bradley 1769-IQ6XOW4 is a Compact I/O digital combination module that integrates six 24 VDC digital inputs and four AC/DC relay outputs. The inputs support sinking or sourcing configurations, while the relay outputs switch external circuits within their rated electrical limits. This combination provides discrete signal monitoring and relay-based control in a single module.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-IQ6XOW4 |
| Brand | Allen Bradley |
| Product Line | CompactLogix |
| Series | A and B |
| Module Type | Digital Combination I/O Module |
| Digital Input Channels | 6 |
| Input Voltage | 24 VDC |
| Input Configuration | Sinking or sourcing |
| Digital Output Channels | 4 |
| Output Type | AC/DC relay |
| Replacement Terminal Block | 1769-RTBN18 |
| Wire Material | Copper |
| Wire Temperature Rating | 90 deg C |
| Solid Wire Size | 22-14 AWG |
| Power Supply Distance Rating | 8 modules |
| Weight | 0.75 lb (0.34 kg) |
| UPC | 662468992923 |
Digital Input and Relay Output Functions
The six input channels receive discrete DC signals from compatible field devices. The sinking or sourcing configuration determines the relationship between the input circuit and the field device's current path. Check the field device specifications and wiring diagrams to confirm the correct connection method.
The four relay output channels switch external AC or DC circuits. When selecting connected loads, verify the voltage and current ratings, switching characteristics, and load type. The relay output rating must suit the actual application rather than relying on the channel count alone.
Installation and Wiring
The module has a power supply distance rating of eight modules. Follow the Compact I/O system layout requirements when positioning it relative to the power supply, and allow adequate cabinet ventilation.
Use copper conductors rated for 90 deg C and solid wire sizes from 22 to 14 AWG, according to the supplied specifications. The specified replacement terminal block is 1769-RTBN18. Confirm terminal assignments and electrical ratings before connecting field wiring.
Frequently Asked Questions
Q: What is the I/O configuration of the 1769-IQ6XOW4?
A: It combines six 24 VDC sinking or sourcing digital inputs with four AC/DC relay outputs.
Q: Which terminal block is specified for replacement?
A: The specified replacement terminal block is 1769-RTBN18. Verify the terminal arrangement before installation.
Q: What should be checked before installing this module?
A: Confirm the input wiring configuration, relay load ratings, conductor specifications, power supply distance, and cabinet ventilation requirements.
Other Attributes
- Series: Allen-Bradley ControlLogix
- Country of Origin: USA
- Lead Time: In Stock, 2 Working Days
