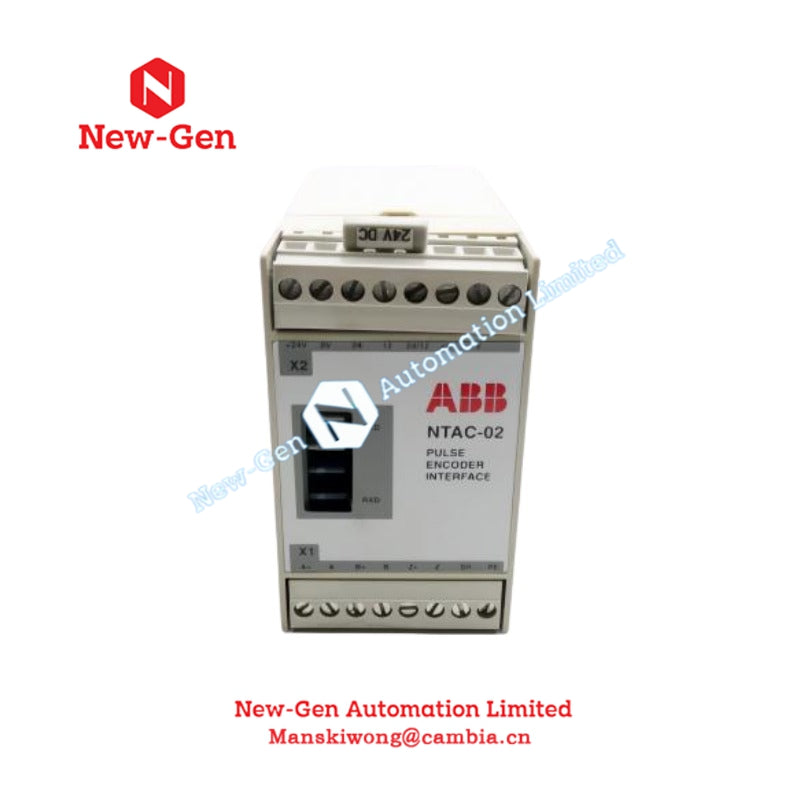

ABB NTAC-02 Pulse Encoder Interface Module

Product Description

Configured for pulse encoder signal interfacing in the ABB ACS 600 drive platform, the ABB NTAC-02 58967441 (NTAC-02 pulse encoder interface module) provides direct electrical connection between a compatible pulse encoder and the drive control system.

Hardware Specifications

Drive and Encoder Interface Characteristics

The NTAC-02 handles the pulse encoder interface between the encoder wiring and the ACS 600 drive system. The encoder connection uses shielded twisted-pair cabling, while the module connects to the drive through a fiber-optic module link.

The module provides encoder supply from the module itself. Its node address is selectable according to the installed drive configuration. Mechanical installation can place the module inside or outside the drive, subject to the applicable ACS 600 installation arrangement.

As an ABB drive interface module, its primary signal path concerns pulse encoder input rather than analog process signals such as 4-20 mA. Encoder cable shielding should maintain a controlled reference path and should be routed separately from high-current motor conductors where practical.

Frequently Asked Questions

Q: What encoder signal does the NTAC-02 interface?
A: The documented interface function is pulse encoder input for an ABB ACS 600 drive.

Q: How does the NTAC-02 connect to the drive?
A: The module uses a fiber-optic module link for its drive connection.

Q: What cable type is specified for the encoder connection?
A: The documented encoder cabling is shielded twisted pair. Cable shielding should be terminated according to the applicable ACS 600 installation requirements.

Field Installation Guidelines

• Verify that the installed drive is an ACS 600 configuration compatible with the NTAC-02 module.
• Confirm the module connection before energizing the drive.
• Use the specified shielded twisted-pair arrangement for the encoder wiring.
• Route encoder wiring away from high-current motor and power conductors where practical.
• Maintain the encoder cable shield continuously through the signal path and terminate it according to the drive installation documentation.
• Verify the selectable module node address against the installed configuration.
• Confirm the fiber-optic module link connection before commissioning.
• Do not apply an external encoder supply unless the installation documentation specifically permits it, because the documented configuration provides encoder supply from the module.
• Check the physical mounting arrangement when installing the module inside or outside the drive enclosure.
• Perform signal verification after wiring and before enabling closed-loop drive operation.

Other Attributes

• Series: Advant OCS/800xA
• Country of Origin:  Germany/Sweden/Finland
• Lead Time: In Stock, 2 Working Days
