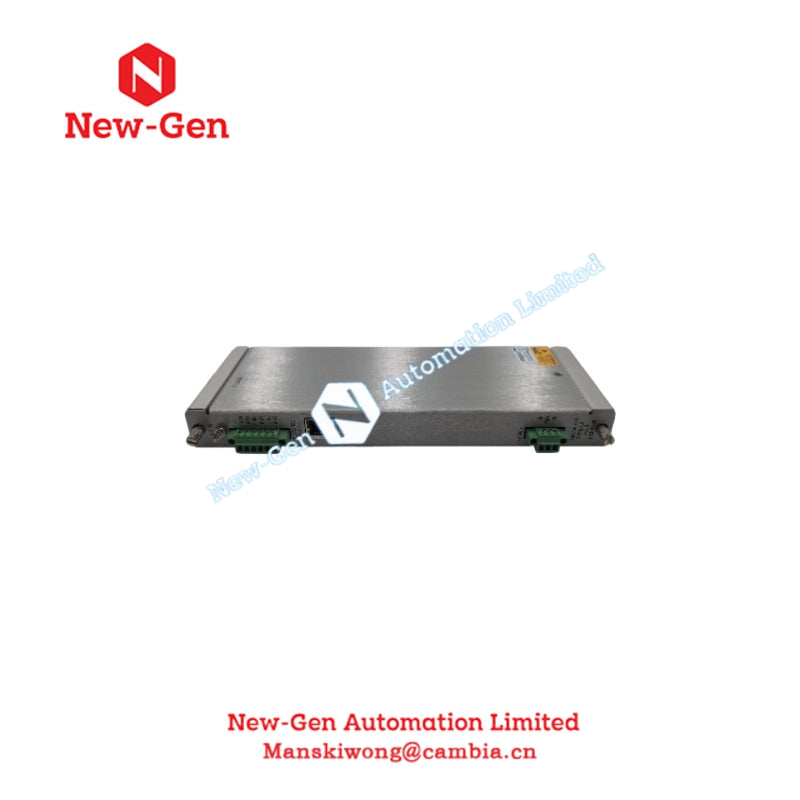

146031-01 3500/22M Bently Nevada Ethernet I/O Module

Product Description

Configured for copper Ethernet communication in the 3500 Machinery Protection System, the Bently Nevada 146031-01 (146031-01 10Base-T/100Base-TX I/O Module) provides direct physical network interfacing between the 3500/22M Transient Data Interface and host monitoring software.

Hardware Specifications

Rotor Dynamics and TSI Signal Interface Characteristics

The Bently Nevada 146031-01 operates as the communication interface for the 3500/22M Transient Data Interface, transferring machinery condition data through copper Ethernet connections. Therefore, the module maintains the communication path required for vibration monitoring and transient data acquisition workflows.

For Bently Nevada machinery monitoring systems, signal integrity depends on correct eddy-current probe scaling, gap voltage validation, and rotor dynamics analysis. The 3500 architecture processes proximity probe signals with validated measurement chains, where probe gap voltage targets commonly reference -10 VDC operating conditions for correct displacement measurement.

The module also supports centralized condition monitoring software communication. Additionally, proper grounding of the Signal Common terminal reduces electrical interference during machinery protection system operation.

Frequently Asked Questions

Q: What Ethernet communication standards does the 146031-01 support?
A: The 146031-01 supports 10Base-T and 100Base-TX copper Ethernet communication through its front-panel RJ-45 interface.

Q: Where is the 146031-01 installed in the 3500 rack?
A: The 146031-01 installs in the I/O slot directly behind the 3500/22M Transient Data Interface main module.

Q: What is the function of the front-panel relay connection?
A: The front-panel OK relay provides rack status indication, while the Signal Common terminal provides a connection point for single-point instrument grounding.

Field Installation Guidelines

Install the Bently Nevada 146031-01 in the designated 3500 rack I/O position behind the compatible 3500/22M module. Verify that the module seating mechanism engages correctly with the rack backplane connector before system operation.

Connect the RJ-45 Ethernet cable using industrial wiring practices. Keep Ethernet communication cables separated from high-voltage power conductors and high-current switching circuits to reduce electromagnetic interference.

Connect the Signal Common terminal according to the site grounding scheme. Use a single-point instrument ground connection to minimize ground loop effects and maintain stable communication performance.

Confirm Ethernet communication status through the connected 3500 System Configuration software or System 1 Condition Monitoring and Diagnostic software after installation.
