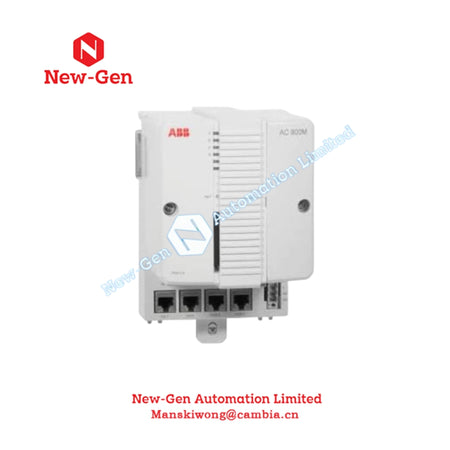

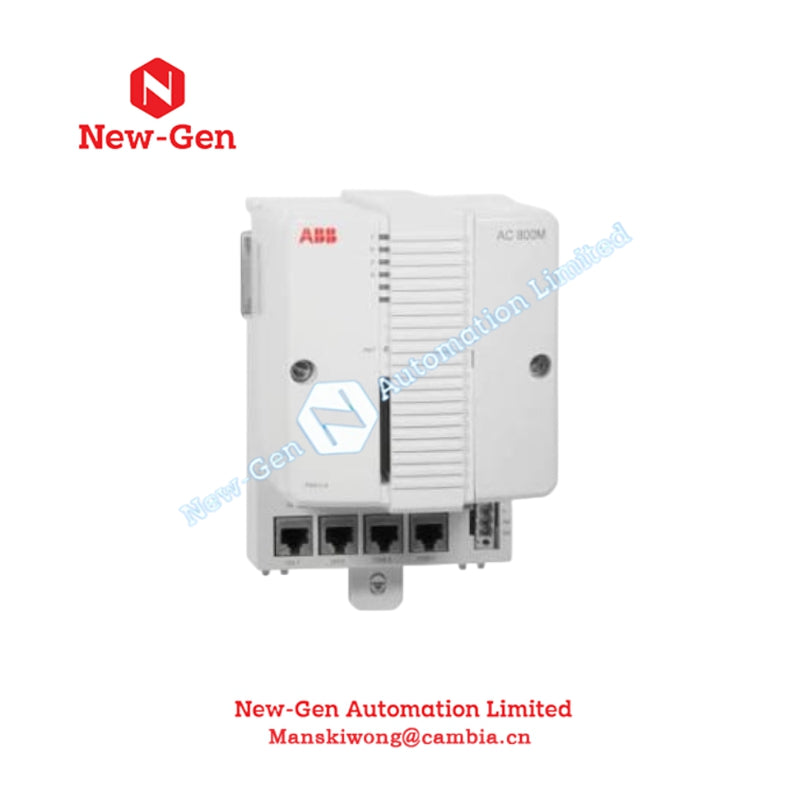

PM867K02 | ABB Redundant High Integrity Processor Unit

Product Description

The ABB PM867K02 (3BSE081638R1) is a redundant, high-integrity processor unit for the AC 800M controller platform. It uses an MPC866 processor operating at 133 MHz to execute control applications, process I/O data and coordinate controller tasks. The unit provides 64 MB of memory, supports redundant CPU configurations and delivers a maximum redundancy switchover time of 10 ms.

Communication and I/O Expansion

The processor supports up to 12 communication modules on the CEX bus, with a maximum supply current of 2.4 A. This bus provides the connection for supported communication modules, allowing the controller to exchange data with external automation devices and networks.

For I/O expansion, the Modulebus supports up to 96 I/O modules with a single PM867 processor or 84 I/O modules in a redundant PM867 configuration. The supported arrangement includes one electrical and seven optical I/O clusters for a non-redundant CPU, while a redundant configuration supports seven optical clusters.

Meanwhile, the Modulebus scan rate ranges from 0 to 100 ms, depending on the number of connected I/O modules. Therefore, the actual scan performance depends on the configured I/O capacity and system arrangement.

Memory and Controller Synchronization

The controller provides 64 MB of memory, including 46.559 MB available for application use. It also has 18 MB of Flash PROM for firmware storage. The specified flash memory is intended for firmware rather than application storage.

The built-in 3.6 V lithium backup battery supports the controller's backup requirements. Furthermore, CNCP protocol enables clock synchronization between AC 800M controllers with an accuracy of 1 ms.

For OPC communication, the controller supports an event queue of up to 3,000 events per OPC client. The specified transmission performance is 36-86 events per second and 113-143 data messages per second.

Technical Specifications

Frequently Asked Questions

Q: Does the ABB PM867K02 support CPU redundancy?

A: Yes. The PM867K02 supports redundant CPU configurations, with a maximum switchover time of 10 ms under the specified redundant configuration.

Q: How many I/O modules can the PM867K02 support?

A: The specified Modulebus capacity is up to 96 I/O modules with a single PM867 processor and up to 84 I/O modules in a redundant PM867 configuration. The available cluster arrangement also differs between these configurations.

Q: What is the difference between the PM867K02 and PM867K01 in the supplied specifications?

A: The supplied weight data distinguishes the two configurations: K01 weighs 1,200 g, while K02 weighs 2,700 g, including the base. The other listed technical specifications describe the PM867K02 and should not automatically be applied to PM867K01.
