BMXAMO0410 Schneider Electric Modicon X80 Isolated Analog Output Module
Техникалық сипаттамалар
Manufacturer: Schneider
Condition：New with Original Package
Product Type: Analog Output Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Осы элементке сұрау жіберу арқылы сіз біздің Шарттар мен шарттарды қарап шыққаныңызды және қабылдағаныңызды растайсыз. Барлық транзакциялар офлайн режимде өңделетінін ескеріңіз.
Маманнан сұраңыз
Бізге көбірек адамдарға жетуге көмектесіңіз! Осы өнімді желіңізбен бөлісіңіз және қолдауыңызды көрсетіңіз!
Product Description

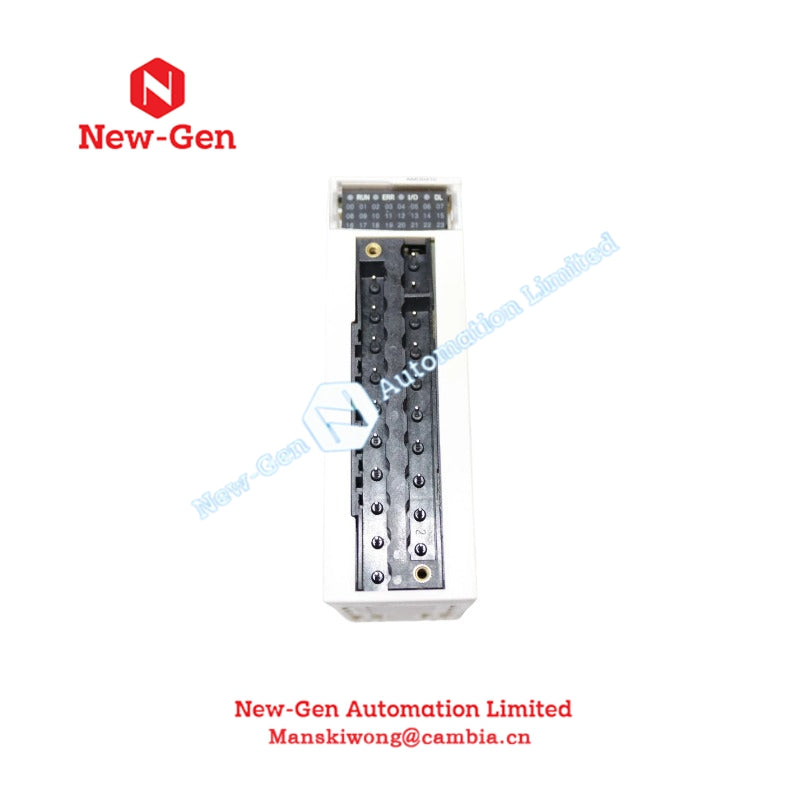

The BMXAMO0410 is a 4-channel isolated analog output module for the Schneider Electric Modicon X80 platform. It provides voltage and current analog outputs on a single 20-way connector and is powered from the rack, making it suitable for control applications that require electrically separated output loops. Each channel can be configured for +/- 10 V, 0-20 mA, or 4-20 mA operation.
Parameter Table
| Parameter | Specification |
|---|---|
| Model | BMXAMO0410 |
| Brand | Schneider Electric |
| Product type | Modicon X80 isolated analog output module |
| Analog outputs | 4 isolated channels |
| Output types | +/- 10 V, 0-20 mA, 4-20 mA |
| Resolution | 15 bits + sign |
| Measurement error | 0.1 % FS at 25 deg C; <= 0.25 % FS 0-60 deg C |
| Temperature drift | 45 ppm/deg C for all ranges |
| Common mode between channels | >= 80 dB |
| Isolation voltage | 1400 VDC ch-ground / ch-bus; 750 VDC between channels |
| Detection | Open circuit 0-20 mA / 4-20 mA; short circuit +/- 10 V |
| Load impedance | >= 1000 Ohm +/- 10 V; <= 500 Ohm current modes |
| Max conversion value | +/- 10.5 V; 0-21 mA |
| Conversion time | <= 1 ms |
| Fallback mode | Configurable / predefined |
| Electrical connection | 20 ways, 1 connector |
| Supply | Internal power supply via rack |
| Power consumption | 3.0 W typ / 3.2 W max at 24 VDC; 0.48 W typ / 0.61 W max at 3.3 VDC |
| Operating temperature | 0-60 deg C |
| Storage temperature | -40-85 deg C |
| Humidity | 5-95 % at 55 deg C, no condensation |
| Vibration / shock | 3 gn / 30 gn |
| Protection | IP20 |
| Altitude | 0-2000 m; derated 2000-5000 m |
| Certifications | CE, RCM, CSA |
| Directives | LV 2014/35/EU, EMC 2014/30/EU, WEEE 2012/19/EU |
| Weight | 0.15 kg |
Frequently Asked Questions
Q: Can the BMXAMO0410 use mixed voltage and current outputs at the same time?
A: The module supports +/- 10 V, 0-20 mA, and 4-20 mA outputs, but each channel must be set to its required output type and wired to a compatible load; mixing is possible only as allowed by the channel configuration and load requirements.
Q: What load can the current outputs drive?
A: The 0-20 mA and 4-20 mA outputs are specified for loads <= 500 Ohm. The +/- 10 V output requires a load of >= 1000 Ohm.
Q: How are output faults indicated?
A: Open-circuit current loops and short-circuit voltage outputs are detected by the module, and diagnostics are shown through the channel LEDs plus the ERR/I/O LEDs.
Other Attributes
- Series：Modicon Quantum
- Country of Origin: USA
- Lead Time: In Stock, 2 Working Days
