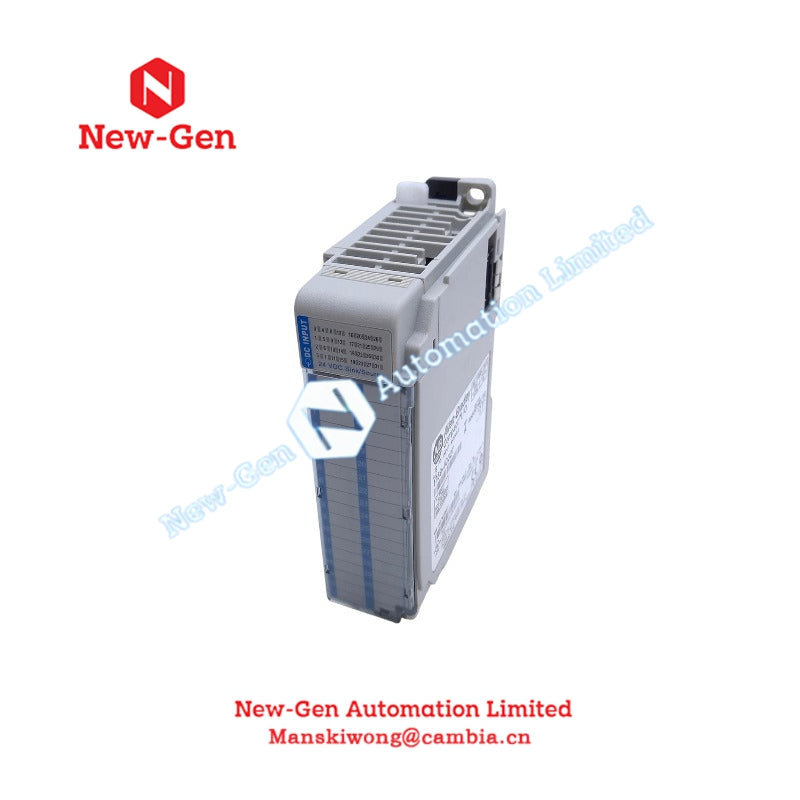

1769-IQ32T Allen Bradley Compact DC Input Module
Техникалық сипаттамалар
Manufacturer: Allen Bradley
Condition：New with Original Package
Product Type: Digital Input Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Осы элементке сұрау жіберу арқылы сіз біздің Шарттар мен шарттарды қарап шыққаныңызды және қабылдағаныңызды растайсыз. Барлық транзакциялар офлайн режимде өңделетінін ескеріңіз.
Маманнан сұраңыз
Бізге көбірек адамдарға жетуге көмектесіңіз! Осы өнімді желіңізбен бөлісіңіз және қолдауыңызды көрсетіңіз!
Product Description
The Allen Bradley 1769-IQ32T is a 32-point digital input module in the Compact I/O product family. It receives 24 VDC discrete signals from field devices and transfers their input states to a compatible controller. The module provides four groups of eight input channels and supports sinking or sourcing input configurations. Its 32-point design allows multiple field signals to connect through a single I/O module.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-IQ32T |
| Brand | Allen Bradley |
| Product Line | CompactLogix |
| Product Family | Compact I/O |
| Product Type | Compact DC Input Module |
| Input Type | Digital Input |
| Number of Inputs | 32 |
| Number of Groups | 4 groups, 8 inputs per group |
| Rated Input Voltage | 24 VDC |
| Voltage Category | 24 VDC sink/source |
| Operating Voltage Range | 10-30 VDC at 30 deg C; 10-26.4 VDC at 60 deg C |
| On-State Voltage | 10 VDC |
| Off-State Voltage | 5 VDC |
| Input Delay, On | 8 ms |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Power Supply Distance Rating | 8 |
| Communication Cable | 32-point |
| Wiring System | Allen Bradley 1492 wiring systems |
| Wiring Accessory | 1746-N3, as supplied |
| Replacement Terminal Block | 1769-RTBN18, as supplied |
| Wire Type | Copper, rated for 90 deg C |
| Solid Wire Size | 22-14 AWG |
| Series | A and B |
| UPC | 781180609589 |
| Weight | 0.56 lb (0.26 kg) |
Input Channels and Signal Processing
The 1769-IQ32T monitors ON/OFF states from connected field devices, such as switches and compatible DC sensors. The controller reads these states as digital input data for logic execution and process monitoring. The four groups of eight channels provide a structured arrangement for field wiring and signal identification.
The input voltage range depends on the specified operating temperature. When selecting the module, check the field-device output voltage against the module's input thresholds and the applicable temperature conditions. The listed 8 ms ON-state input delay should also be considered when evaluating response requirements for changing input signals.
Wiring and Installation Considerations
The supplied specifications identify Allen Bradley 1492 wiring systems and a 32-point cable arrangement. They also list the 1746-N3 wiring accessory and 1769-RTBN18 replacement terminal block. Confirm the connector type, cable assembly and terminal-block compatibility against the installed module revision before ordering replacement parts.
Use copper conductors rated for 90 deg C within the specified 22-14 AWG solid-wire range. The field wiring must match the selected sinking or sourcing configuration and the relevant DC supply polarity. Verify the manufacturer's wiring diagram before connecting field devices.
Frequently Asked Questions
Q: How many digital input signals does the 1769-IQ32T support?
A: The module supports 32 digital input channels arranged in four groups of eight. It is designed for 24 VDC discrete input signals.
Q: What should be checked when replacing an existing 1769-IQ32T?
A: Confirm the complete model number, hardware series, controller compatibility, input wiring configuration and connector arrangement. Also check the terminal block and prefabricated cable requirements before installation.
Q: What is the operating voltage range of the 1769-IQ32T?
A: The supplied specifications list 10-30 VDC at 30 deg C and 10-26.4 VDC at 60 deg C. The listed ON-state and OFF-state thresholds should be verified against the applicable manufacturer's technical documentation before finalizing the design.
Other Attributes
- Series: Allen-Bradley ControlLogix
- Country of Origin: USA
- Lead Time: In Stock, 2 Working Days
