ProSoft ILX69-PBM PROFIBUS DP Master Communication Module

Product Description

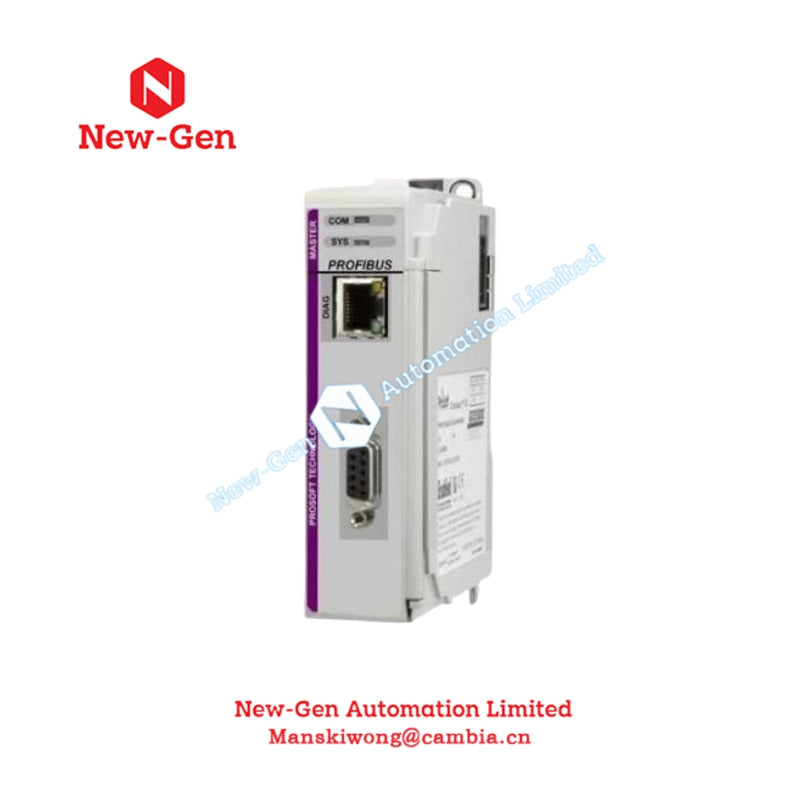

The ProSoft Technology ILX69-PBM is a PROFIBUS DP master communication module designed for the CompactLogix platform. It enables a PLC controller to exchange process data cyclically with connected PROFIBUS slave devices. The module transfers data through the CompactLogix backplane process image and supports Ethernet-based configuration, web diagnostics, and onboard flash storage for retaining configuration data across power cycles.

Technical Specifications

PROFIBUS Communication and Data Exchange

The ILX69-PBM operates as the PROFIBUS master and manages cyclic communication with connected slave devices. The CompactLogix controller exchanges process data with the module through its I/O process image. The controller and module update their respective process images automatically during runtime, allowing the PLC program to access the exchanged data through the controller's I/O structure.

Configuration and Diagnostics

The module uses an Ethernet connection for configuration and diagnostics through ProSoft fdt Configuration Manager. Its web interface provides basic diagnostic information to assist with communication checks and fault investigation. Configuration data remains in onboard flash memory, allowing the saved configuration to be available after power-up without requiring the operator to reload the project for every restart.

Memory and Configuration Backup

The onboard SD card slot supports configuration project backups, with the supplied information specifying cards up to 4 GB in FAT format. This provides a way to retain a separate copy of the module configuration for maintenance and recovery. Verify the supported card and firmware requirements before performing a backup or firmware operation.

Frequently Asked Questions

Q: What is the primary function of the ILX69-PBM?

A: It connects a CompactLogix controller to a PROFIBUS DP network and manages cyclic process data exchange with configured slave devices.

Q: How does the ILX69-PBM exchange data with the PLC?

A: It uses the CompactLogix backplane and I/O process image. The controller program accesses the data through the configured module I/O structure.

Q: Does the ILX69-PBM support configuration backup?

A: Yes. The module stores its configuration in onboard flash memory and supports backing up configuration project files to an SD memory card. The supplied information specifies a maximum card capacity of 4 GB and FAT formatting.
