FS-TSRO-0824 | Honeywell | Digital Output Field Termination Assembly

Product Description

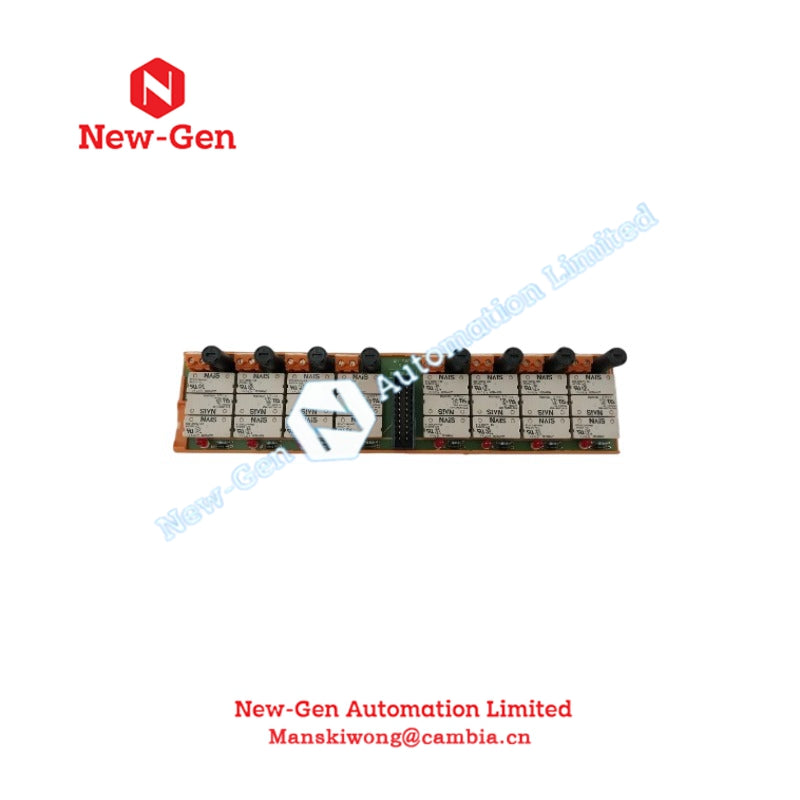

The Honeywell FS-TSRO-0824, also cataloged as the FS-TSRO-0824 Digital Output Field Termination Assembly, operates as a dedicated hardware component for safety-critical signal routing and relay switching within Safety Manager safety instrumented systems.

Hardware Specifications

Channel-to-Channel Isolation & SIL 3 Safety Architecture

Configured for high-integrity loop execution, the module incorporates a dedicated high-integrity architecture across all eight channels to meet safety instrumented requirements up to SIL 3 in compliance with IEC 61508. Each output loop utilizes a triple-relay structure combined with a fused normally open field contact to enforce safe-state execution upon logic solver command. The floating and non-commoned design isolates individual output channels completely, eliminating cross-talk and ground-loop interference. Galvanic separation between the control system interconnection cable (SICC-0001/Lx) and the external field wiring guarantees that channel-to-channel faults do not compromise adjacent safety loops or emergency shutdown circuits.

Frequently Asked Questions

Q: What is the minimum switching load supported by the relay contacts?

A: The minimum output current specification is 1 mA at 5 V to ensure proper contact wetting and reliable signal transmission in low-energy loops.

Q: Can the field termination assembly be hot-swapped during active system operation?

A: Hot-swapping field termination assemblies depends on the specific system cabinet power distribution design; ensure loop power and system interconnecting cables are de-energized prior to physical replacement to prevent voltage transients.

Q: How is the module connected to the Safety Manager system?

A: The assembly interfaces directly with the system via the SICC-0001/Lx system interconnection cable on the controller side, while external field devices connect directly to the 8 independent relay output terminals.

Field Installation Guidelines

• Mount the assembly vertically within a dedicated industrial control cabinet to ensure adequate convective cooling across the 300 x 70 x 58 mm chassis footprint.
• Terminate external field wiring securely to the fused normally open contact terminals, ensuring wire gauges comply with the 5 A maximum continuous current rating.
• Maintain physical separation between low-voltage logic signal cables and high-voltage field power cabling to mitigate electromagnetic interference (EMI).
• Verify that nominal input voltage supplied from the control loop does not exceed the 36 VDC maximum threshold (with a relay pick-up voltage established at 19.2 VDC).

Other Attributes

• Series: Honeywell Experion PKS(C200,C300)
• Country of Origin:  USA
• Lead Time: In Stock, 2 Working Days
