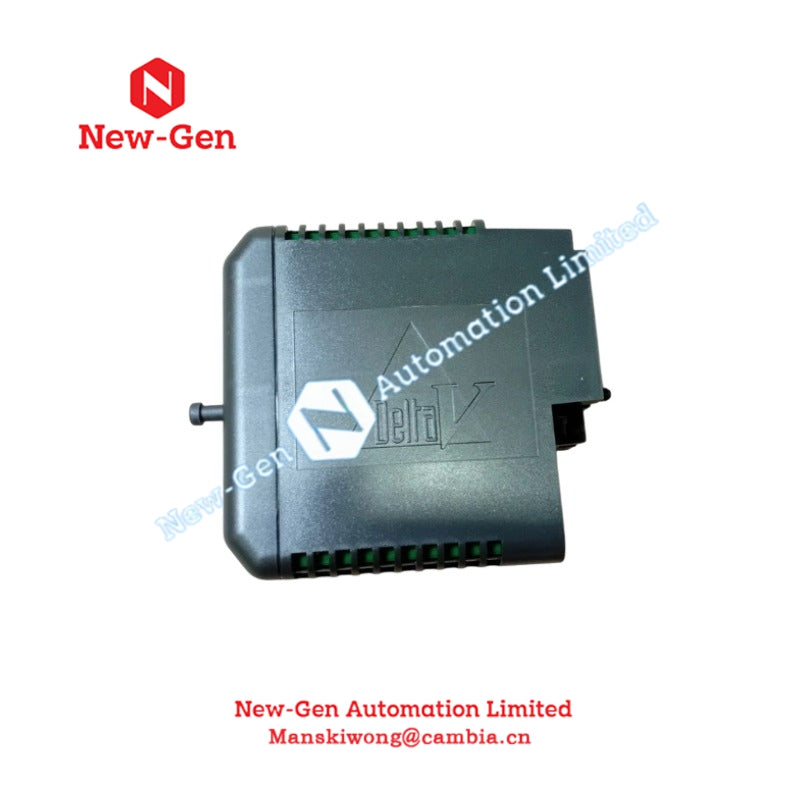

Emerson VE4003S6B1 KJ3225X1-BA1 12P4174X042 RTD / Resistance Input Card

Product Description

The Emerson VE4003S6B1 KJ3225X1-BA1 12P4174X042 serves as the primary VE4003S6B1 RTD / Resistance Input Card utilized to execute resistance temperature detection and signal conversion across distributed control system platforms.

Suffix Breakdown & Model Matrix

The module part number encompasses specific hardware revisions and assembly identifiers:

• VE4003S6B1: Base system module designation for the I/O card family.
• KJ3225X1-BA1: Printed circuit assembly identifier and hardware catalog code.
• 12P4174X042: Manufacturing bill of materials and component traceability serial code.

Hardware Specifications

Channel Isolation and Resistance Input Accuracy

Designed for industrial process measurement, this card processes resistance temperature detector inputs while maintaining robust electrical separation. The architecture integrates channel-to-channel isolation features to mitigate ground loop interference and common-mode transients in high-noise environments. Furthermore, cold junction compensation and internal linearization algorithms ensure accurate temperature readings across the full operational range from -40 deg C to +70 deg C.

Frequently Asked Questions

Q: What is the backplane power load requirement when operating this module?

A: The module draws 160 mA from the 12 VDC local bus power supply. System power budgets must account for this current draw on the carrier slot.

Q: How does the terminal block key position C3 prevent incorrect field wiring?

A: The mechanical key position C3 corresponds to physical pin configurations on the associated terminal block, preventing insertion of incompatible or mismatched field wiring modules into this slot.

Q: Can this module operate in corrosive industrial environments?

A: Yes, the circuitry complies with ISA-S71.04 - 1985 Airborne Contaminants Class G3 specifications, providing defined resistance against corrosive gases.

Field Installation Guidelines

1. Ensure the system power is de-energized before mounting or dismounting the module on the carrier.
2. Verify that the terminal block key position matches C3 to ensure correct mechanical alignment.
3. Secure the module firmly using designated retention screws to withstand rated shock (10g 1/2 Sinewave for 11 msec) and vibration profiles (1 mm Peak to Peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz).
4. Terminate signal cable shields to the designated ground bar to maintain electromagnetic compatibility and prevent common-mode noise coupling in industrial settings.

Other Attributes

• Country of Origin: USA
• Lead Time: In Stock, 2 Working Days
