330703-000-040-10-12-00 Bently Nevada 3300 XL 11 mm Proximity Probe
Spesifikasi teknis
Manufacturer: Bently Nevada
Condition：New with Original Package
Product Type: Proximity Probes
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Dengan mengajukan permintaan untuk item ini, Anda mengonfirmasi bahwa Anda telah meninjau dan menerima Syarat & Ketentuan kami. Harap dicatat bahwa semua transaksi akan diproses secara offline.
Tanyakan pada ahlinya
Bantu kami menjangkau lebih banyak orang! Bagikan produk ini ke jaringan Anda dan tunjukkan dukungan Anda!
Product Description

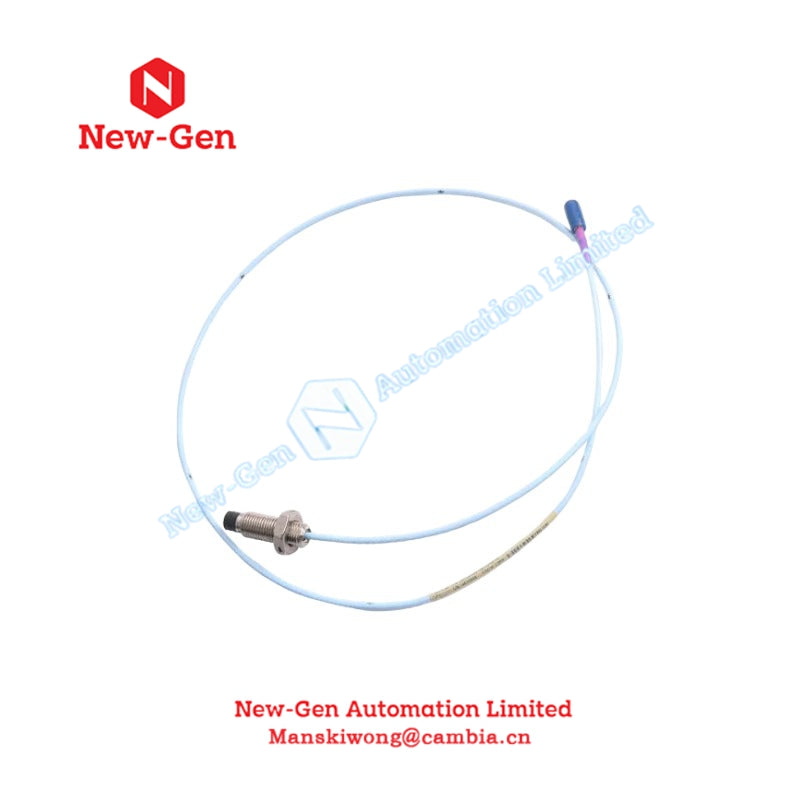

The Bently Nevada 330703-000-040-10-12-00 is a 3300 XL 11 mm proximity probe for non-contact shaft position and vibration measurement. This configuration features an M14 x 1.5 metric thread, a 40 mm overall case length, a 1 m probe length, and a FluidLoc cable with a miniature coaxial ClickLoc connector. The probe has an AISI 304 stainless steel case and a polyphenylene sulfide (PPS) tip.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330703-000-040-10-12-00 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Product Type | 11 mm Proximity Probe |
| Case Thread | M14 x 1.5 |
| Armor Selection | Without armor |
| Mounting Configuration | Forward mount |
| Unthreaded Length | 0 mm |
| Overall Case Length | 40 mm |
| Total Probe Length | 1 m |
| Cable Type | FluidLoc |
| Connector Type | Miniature coaxial ClickLoc |
| Case Material | AISI 304 stainless steel |
| Tip Material | Polyphenylene sulfide (PPS) |
| Lead Construction | 75 ohm triaxial cable with FEP insulation |
| Operating and Storage Temperature | -52 to +177 deg C |
| Recommended Case Torque | 21.1 N m |
| Connector Material | Gold-plated brass |
| Minimum Cable Bend Radius | 25.4 mm |
Sensing Function
The probe detects changes in the distance between its tip and a conductive target without mechanical contact. Within a compatible transducer chain, the probe works with an extension cable and Proximitor Sensor to provide an electrical signal corresponding to target movement. This signal supports shaft vibration and position measurements when the complete system matches the application requirements.
Cable and Connector Configuration
This model uses a FluidLoc cable and a miniature coaxial ClickLoc connector without a connector protector. The 1 m specification refers to the probe's total length, not necessarily the total electrical length of the complete transducer system.
Before replacement, verify the extension cable and Proximitor Sensor models against the existing installation. The probe, extension cable and sensor must form a compatible measurement chain.
Installation Considerations
The M14 x 1.5 thread and 40 mm case length define the probe's threaded mounting interface and overall case dimensions. Check the mounting arrangement and target clearance before installation.
Maintain a minimum cable bend radius of 25.4 mm and observe the recommended case torque of 21.1 N m. Also inspect the connector, cable routing and probe tip for damage before commissioning.
Frequently Asked Questions
Q: Which extension cable and Proximitor Sensor are compatible with this probe?
A: Select the extension cable and Proximitor Sensor according to the required electrical length and transducer system configuration. The probe model alone does not establish the exact compatible sensor part number.
Q: Does this model include a connector protector?
A: No. The specified connector option uses a miniature coaxial ClickLoc connector with FluidLoc cable without a connector protector.
Q: What should be verified before ordering a replacement?
A: Confirm the complete model number, M14 x 1.5 thread, 40 mm case length, 1 m probe length, cable and connector configuration, and compatibility with the installed transducer chain.
Other Attributes
- Series: 24765 and 135613 Case Expansion Transducer Systems
- Country of Origin: USA
- Lead Time: In Stock, 2 Working Days
