TC-ODJ161 Honeywell Digital Output Module 24 VDC

Product Description

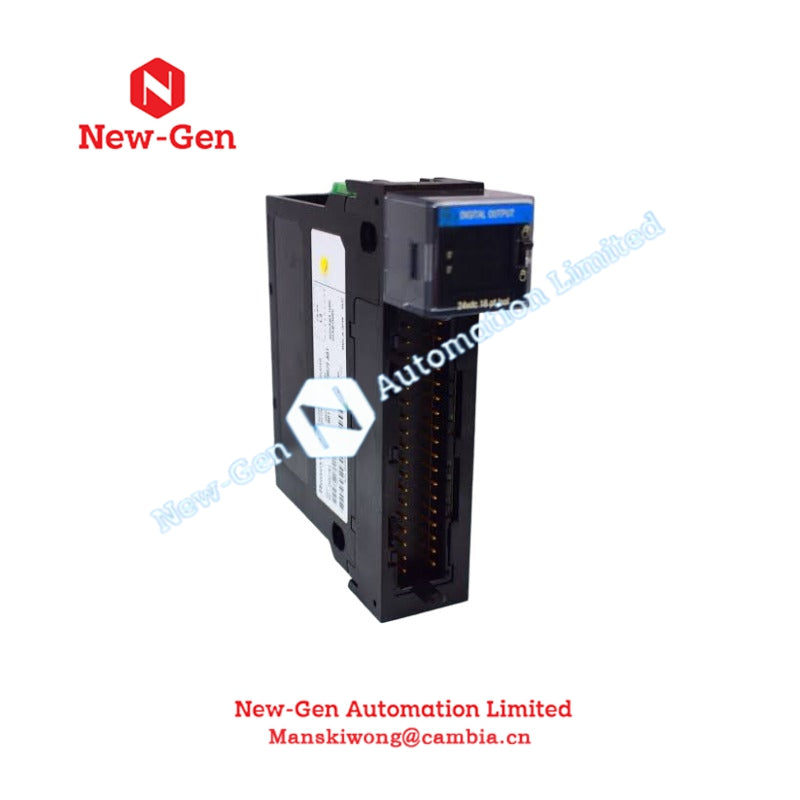

The Honeywell TC-ODJ161, also identified by the base model TC-ODJ161, is a digital output module specified for 24 VDC discrete control signals. It interfaces controller output commands with external field circuits, such as relay interfaces and other switching devices. Confirm the installed I/O chassis, terminal assembly, and field wiring requirements against the applicable Honeywell documentation before installation.

Hardware Specifications

Discrete Output Signal and Channel Isolation

The TC-ODJ161 is identified as a 24 VDC digital output module. Each configured output channel represents a discrete switching command for a compatible field circuit. The receiving device and output load must match the module's electrical ratings.

Channel isolation affects the electrical relationship between output circuits and other module electronics. However, the supplied information does not establish whether isolation applies between individual channels, channel groups, or the field side and logic side. Verify the isolation specification before connecting circuits with different grounding references.

Frequently Asked Questions

Q: What output voltage does the TC-ODJ161 use?

A: The supplied product information identifies 24 VDC as the output voltage. Confirm the permitted voltage range and load current from the manufacturer's documentation.

Q: Which terminal assembly is compatible with the TC-ODJ161?

A: The supplied description mentions a 36-pin field-wiring interface and TC-TBCH as a possible terminal assembly. Confirm the exact terminal assembly part number and connector compatibility before wiring.

Q: Can the TC-ODJ161 be replaced while the control system is energized?

A: Hot-swap support is not established by the supplied information. Check the applicable chassis and module installation instructions before removing or replacing the module under power.

Field Installation Guidelines

1. Verify the complete module part number and confirm compatibility with the installed Honeywell control system.
2. Isolate field power and follow the site's electrical isolation procedures before connecting or disconnecting wiring.
3. Confirm terminal assembly compatibility, connector orientation, and channel assignments against the applicable wiring documentation.
4. Check field-device voltage, steady-state current, inrush current, and load type against the module's published output ratings.
5. Route discrete output wiring separately from sensitive analog signal wiring where practical. Follow the site's grounding, shielding, and segregation requirements.
6. Verify common-return arrangements and grounding references before energizing the field circuits.
7. After installation, test each configured output channel and confirm that the corresponding field device responds correctly.
8. Do not assume hot-swap capability, short-circuit protection, or a specific isolation rating without manufacturer documentation.

Other Attributes

• Series: Honeywell Experion PKS(C200,C300)
• Country of Origin:  USA
• Lead Time: In Stock, 2 Working Days
