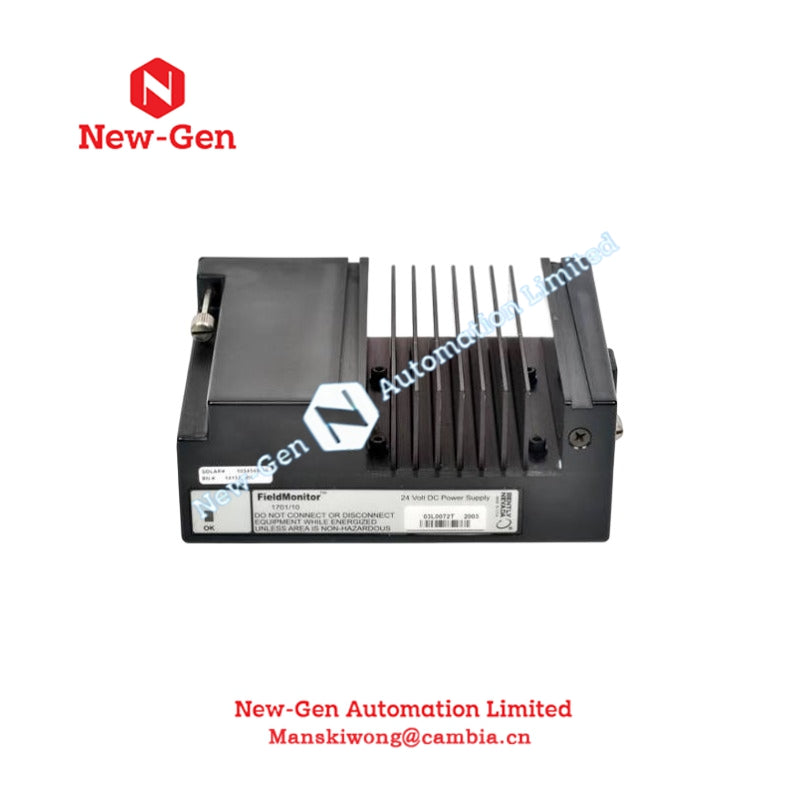

1701/10 Bently Nevada FieldMonitor DC Power Supply
مشخصات فنی
Manufacturer: Bently Nevada
Condition：New with Original Package
Product Type: DC Power Supplies
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
با ارسال درخواست برای این مورد، تأیید می‌کنید که شرایط و ضوابط ما را بررسی و پذیرفته‌اید. لطفاً توجه داشته باشید که تمام تراکنش‌ها به صورت آفلاین پردازش خواهند شد.
از یک متخصص بپرسید
به ما کمک کنید به افراد بیشتری دسترسی پیدا کنیم! این محصول را با شبکه خود به اشتراک بگذارید و حمایت خود را نشان دهید!
Product Description
The Bently Nevada 1701/10 is a FieldMonitor DC power supply that provides logic and transducer voltages for compatible modules installed in a FieldMonitor system. It occupies a dedicated slot in the terminal base and accepts an 18 to 36 VDC input. The historical ordering information lists 1701/10-01 as an ordering entry for this product family.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1701/10 |
| Brand | Bently Nevada |
| Product Type | FieldMonitor DC Power Supply |
| Ordering Entry | 1701/10-01 |
| Input Voltage Range | 18 to 36 VDC |
| Nominal Peak Inrush Current | 30 A |
| Specified Input Fuse | 250 V, 3 A, slow-blow |
| Primary-to-Chassis Isolation Test | 850 VDC for 1 minute |
| Input Conductor Size | 14 to 26 AWG |
| Operating Temperature | -20 to +70 deg C |
| Storage Temperature | -40 to +85 deg C |
| Operating and Storage Humidity | 5 to 95% RH, non-condensing |
| Supported Terminal Bases | 1701/05 or 1701/06 |
| Listed Spare Fuse | 01700025 |
Power Supply Function and Input Requirements
The 1701/10 supplies the internal logic and transducer voltages required by other FieldMonitor modules. Its dedicated terminal-base position distinguishes it from monitoring modules that process specific field signals. The 18 to 36 VDC input range defines the normal supply operating conditions.
The specified 30 A nominal peak inrush current is relevant when checking the upstream DC source and protective circuit. This transient rating is distinct from continuous power consumption, which is not specified in the available data.
Protection and Electrical Isolation
The specified input fuse is rated at 250 V and 3 A with a slow-blow characteristic. The listed spare fuse part number is 01700025. Verify the required fuse type and rating before replacement rather than selecting a fuse based only on physical fit.
The primary-to-chassis isolation test is specified at 850 VDC for one minute. The 50 VDC overvoltage withstand rating indicates a stated no-damage condition; it does not extend the normal operating input range beyond 36 VDC.
Installation and Environmental Conditions
The 1701/10 is specified for use with the 1701/05 or 1701/06 terminal base. Confirm the installed terminal-base model before selecting the power supply, and verify that the available DC source meets the input voltage and inrush requirements.
Input conductors must fall within the specified 14 to 26 AWG range. The operating and storage temperature limits differ, so storage conditions should not be treated as permissible operating conditions. Humidity must remain within 5 to 95% RH, non-condensing.
Frequently Asked Questions
Q: What is the function of the Bently Nevada 1701/10?
A: It provides DC power for the logic and transducer circuits of other modules in the FieldMonitor system. It is a power supply, not a proximity-input monitor.
Q: Which terminal bases are specified for the 1701/10?
A: The listed compatible terminal bases are the 1701/05 and 1701/06. Confirm the installed base and system configuration before replacement.
Q: Can the 1701/10 operate from a 50 VDC input?
A: No. Its specified operating input range is 18 to 36 VDC. The 50 VDC figure refers to an overvoltage withstand condition under which no damage is specified, not a normal operating voltage.
Other Attributes
- Series: 24765 and 135613 Case Expansion Transducer Systems
- Country of Origin: USA
- Lead Time: In Stock, 2 Working Days
