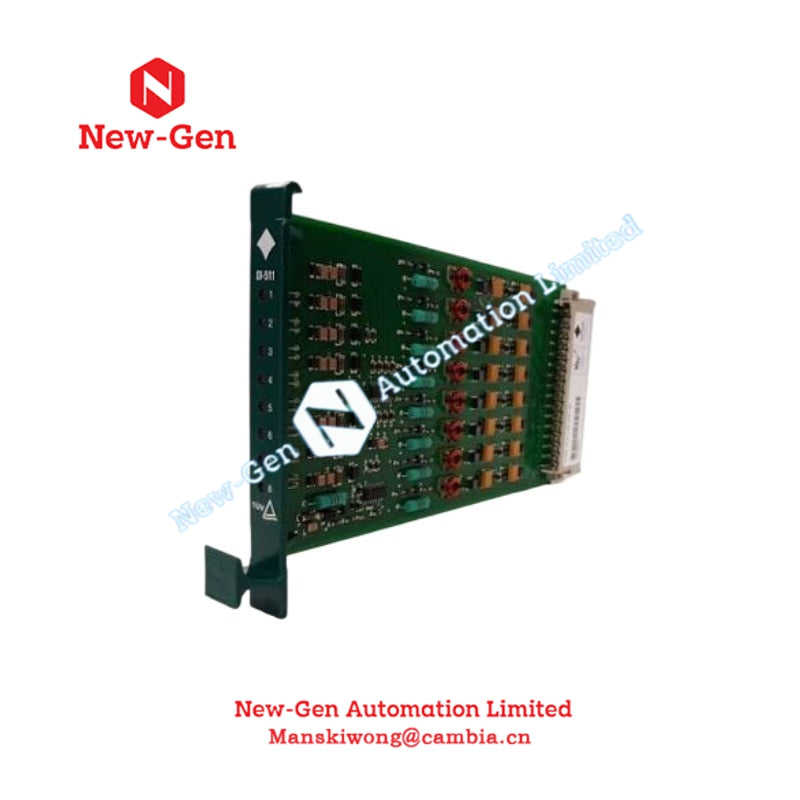

DI-511-05 YOKOGAWA Digital Input Module (Fail-Safe)

The DI-511-05 is a fail-safe digital input module that converts isolated 24 VDC field signals into digital logic signals for the ProSafe-SLS system. It provides 8 input channels, with signal status processed into 8-bit serial data for system communication. The module includes input-level monitoring, fail-safe detection, and a red LED status indicator for each output.

Technical Specifications

Input Signal Processing

The DI-511-05 accepts isolated DC field inputs and evaluates their voltage levels against the specified logic thresholds. Signals above 18 VDC represent logic level 1, while signals below 10 VDC represent logic level 2. The 10-18 VDC range is not explicitly defined in the supplied specifications, so it should not be treated as a guaranteed logic state.

The module uses clock pulses from the MC-573 and transfers input information as 8-bit serial data at 0/11 V logic levels. The stated propagation delay is 5-15 ms for both switching on and switching off. These delays should be considered when assessing signal response requirements.

Fail-Safe Characteristics and Indication

The fail-safe input design specifies a fail-safe level below 0.5 V or below 2.5 mA under multiple-component failure conditions. This describes a stated failure-related input condition; it does not, by itself, establish a particular SIL rating or overall system safety certification.

Red LEDs provide individual output status indication. The specified output capacity is 10 unit loads, with current pulses up to 500 mA. These output-related ratings should be distinguished from the 8-channel field input rating when checking system configuration.

Mechanical and Environmental Requirements

The module uses a single Euro-format PCB measuring 160 x 100 x 15 mm, with a 3 TE format and a 48-pin DIN 41612 Form F connector. Confirm the mating connector, rack or carrier arrangement, and wiring allocation against the applicable ProSafe-SLS hardware documentation before replacement.

The specified operating range is -20 to +70 deg C, with storage permitted from -25 to +85 deg C. Relative humidity must remain at or below 95% without condensation. The listed shock and vibration ratings provide additional criteria for evaluating the intended installation environment.

Frequently Asked Questions

Q: What type of field signals does the DI-511-05 accept?

A: It accepts isolated 24 VDC digital input signals with a tolerance of +/- 20%. The documented logic thresholds are above 18 VDC for level 1 and below 10 VDC for level 2.

Q: How does the DI-511-05 communicate input states?

A: The module uses clock pulses from the MC-573 and provides 8-bit serial data at 0/11 V logic levels. The specified on and off propagation delays are both 5-15 ms.

Q: What should be checked before replacing this module?

A: Verify the complete DI-511-05 model designation, 48-pin DIN 41612 Form F connector, mechanical format, supply requirements, signal thresholds, and interface with the existing ProSafe-SLS configuration. Confirm the applicable safety-system requirements before placing the replacement into service.
