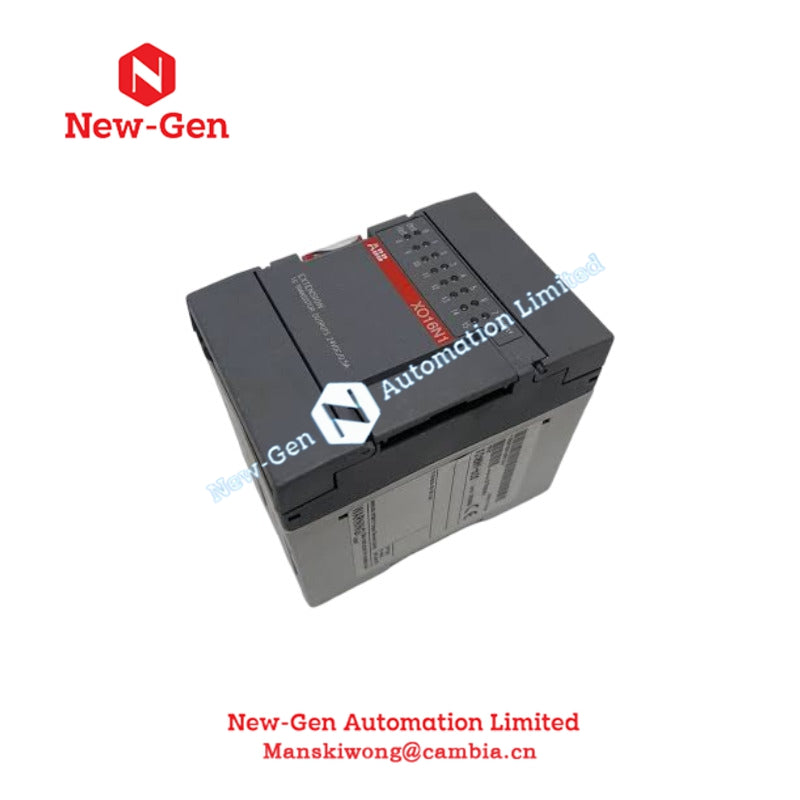

X016N1 ABB Digital Output Extension Module

Product Description

The ABB X016N1, also cataloged as the XO16N1 Digital Output Extension Module, operates as a dedicated hardware component for transistor output expansion and actuator signal execution within ABB PLC automation systems.

Hardware Specifications

PLC I/O Density Scaling and Firmware Compatibility

The ABB X016N1 integrates with ABB PLC architectures through digital output expansion functions. Therefore, it increases available I/O density by adding 16 transistor output channels for external control circuits. The module executes discrete switching commands for connected devices such as valves, relays, lamps, and actuator interfaces.

Furthermore, the transistor output design supports fast electrical switching compared with relay-based outputs. The module requires correct PLC configuration parameters and compatible firmware versions to maintain communication integrity with the controller platform. Installation engineers should verify hardware revision compatibility before system commissioning.

Frequently Asked Questions

Q: What type of output signals does the ABB X016N1 provide?
A: The ABB X016N1 provides 16 transistor digital outputs with a rated output voltage of 24 VDC and a maximum current of 0.5 A per channel.

Q: Can the X016N1 replace relay output modules directly?
A: No. The X016N1 uses transistor switching technology and requires compatibility with DC field devices. Relay output applications require separate evaluation of voltage, current, and load characteristics.

Q: Does the module support hot-swapping during PLC operation?
A: Available documentation does not confirm hot-swap capability. Field replacement should follow the PLC system installation procedure and power isolation requirements.

Field Installation Guidelines

Install the ABB X016N1 on the designated PLC expansion interface according to the controller hardware manual. Confirm that the backplane connection is fully seated before applying system power.

Separate output wiring from high-voltage power cables to reduce electrical interference. Use appropriate terminal tightening methods and verify conductor ratings according to the connected field load requirements.

For industrial cabinet installation, connect protective grounding according to the PLC system grounding design. Check output polarity, channel assignment, and field device compatibility before commissioning.

Other Attributes

• Series: Advant DCS/800xA
• Country of Origin:  Germany/Sweden/Finland
• Lead Time: In Stock, 2 Working Days
