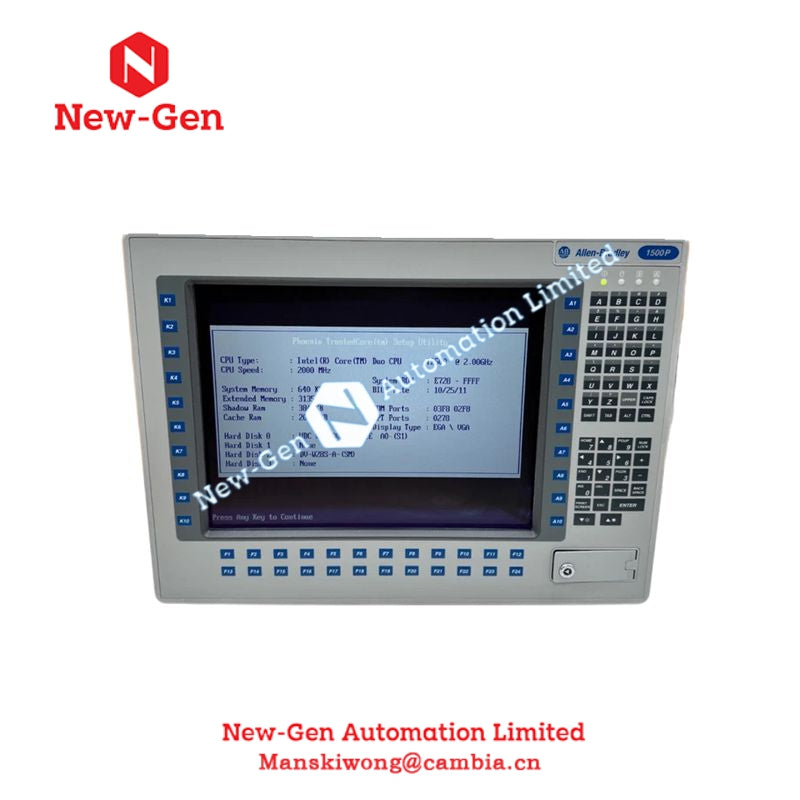

Allen-Bradley 6180P-15BPXP Integrated Display Computer
Технически спецификации
Manufacturer: Allen Bradley
Condition：New with Original Package
Product Type: Integrated Display Computer
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
С подаването на заявка за този артикул, вие потвърждавате, че сте прегледали и приели нашите Условия за ползване. Моля, имайте предвид, че всички транзакции ще бъдат обработвани офлайн.
Попитайте експерт
Помогнете ни да достигнем до повече хора! Споделете този продукт с вашата мрежа и покажете своята подкрепа!
Product Description
The 6180P-15BPXP integrated display computer comes from the Allen-Bradley VersaView 1500P industrial computing platform.
Engineers deploy 6180P-15BPXP to combine a rugged industrial computer and operator display into a single panel-mounted device.
Moreover, Rockwell Automation designs 6180P-15BPXP for demanding factory environments requiring reliable visualization and data processing.
Therefore, control engineers gain high computing performance together with durable industrial display integration.
Furthermore, 6180P-15BPXP integrates computing hardware, industrial I/O interfaces, and a 15-inch TFT display in one enclosure.
Consequently, system designers simplify panel layouts while maintaining powerful industrial computing capabilities.
TechnicalSpecifications
| Parameter | Detailed Specification |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model Number | 6180P-15BPXP |
| Product Series | VersaView Plus 6180P Integrated Display Computer |
| Product Type | Industrial Integrated Display Computer |
| Display Type | Color active-matrix TFT flat panel |
| Display Size | 15 in (381 mm) diagonal |
| Display Area | Approx. 305 × 229 mm (12 × 9 in) |
| Native Resolution | 1024 × 768 pixels |
| Display Colors | 256K color TFT |
| Brightness | Approx. 350 cd/m² |
| Response Time | Max. 20 ms |
| Viewing Angle | 60° horizontal / 40° vertical |
| Touchscreen | Optional resistive anti-glare touchscreen |
| Keypad | Integrated alphanumeric keypad with approx. 44 function keys |
| Processor | Intel Core Duo processor |
| Processor Frequency | Up to 2.0 GHz depending on configuration |
| Chipset | Intel 945GME |
| Standard RAM | 2 GB DDR2 |
| Maximum RAM | 4 GB |
| Memory Slots | 2 DDR2 DIMM slots (dual channel) |
| Hard Disk Drive | 160 GB 3.5-inch SATA HDD, hot-swappable |
| Optical Drive | Slim DVD-RW optical drive |
| Expansion Slots | 1 full-length ISA slot, 2 full-length PCI slots, 1 half-length PCI slot |
| Ethernet Ports | 2 × RJ45 10/100/1000 Mbps LAN |
| USB Ports | 6 total (2 front + 4 rear USB 2.0) |
| Serial Ports | 2 × RS-232 serial ports |
| Parallel Port | 1 × DB-25 parallel port |
| Video Output | 1 × DVI port |
| Audio Interfaces | Line-in, line-out, microphone |
| Input Voltage (AC) | 90–264 V AC, auto-ranging |
| Input Voltage (DC) | 18–32 V DC |
| Line Frequency | 47–63 Hz |
| Power Consumption | Approx. 144 VA |
| Power Dissipation | Approx. 144 W |
| Inrush Current | 20 A peak at 24 V DC for 5 ms |
| Power Management | ACPI compliant |
| Mounting Method | Panel mount industrial enclosure |
| Front Panel Protection | IEC IP66 rated |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | −20 to 60 °C |
| Operating Humidity | 20–85% non-condensing at 40 °C |
| Non-Operating Humidity | 5–90% non-condensing |
| Operating Vibration | 1 g |
| Non-Operating Vibration | 2 g |
| Operating Shock | 15 g, 11 ms half-sine |
| Non-Operating Shock | 30 g, 11 ms half-sine |
| Dimensions | 13.97 × 19.01 × 8.86 in (approx. 355 × 483 × 225 mm) |
| Weight | Approx. 18 kg (shipping weight about 38.8 lb) |
| Operating System | Typically Windows XP Professional SP3 pre-installed |
| Cooling System | PSU fan, chassis fans, processor heat sink cooling |
| Relative Humidity Range | Up to 95% non-condensing depending on temperature |
FAQ
Q1: What type of display does the 6180P-15BPXP use?
A1: 6180P-15BPXP uses a 15-inch color TFT active matrix display with 1024 × 768 resolution for industrial visualization.
Q2: How much memory can the 6180P-15BPXP support?
A2: The 6180P-15BPXP includes 2 GB RAM and supports expansion up to 4 GB using two DDR2 DIMM slots.
Q3: What storage device comes with the 6180P-15BPXP?
A3: 6180P-15BPXP includes a 160 GB SATA hard drive with hot-swap capability for fast maintenance.
Q4: What communication interfaces are available on the 6180P-15BPXP?
A4: 6180P-15BPXP provides two Ethernet ports, six USB ports, two serial ports, one parallel port, and one DVI interface.
Q5: Is the 6180P-15BPXP available in stock?
A5: Yes. The 6180P-15BPXP is brand new original factory sealed. We usually ship within 3 days to 2 weeks depending on order size.
