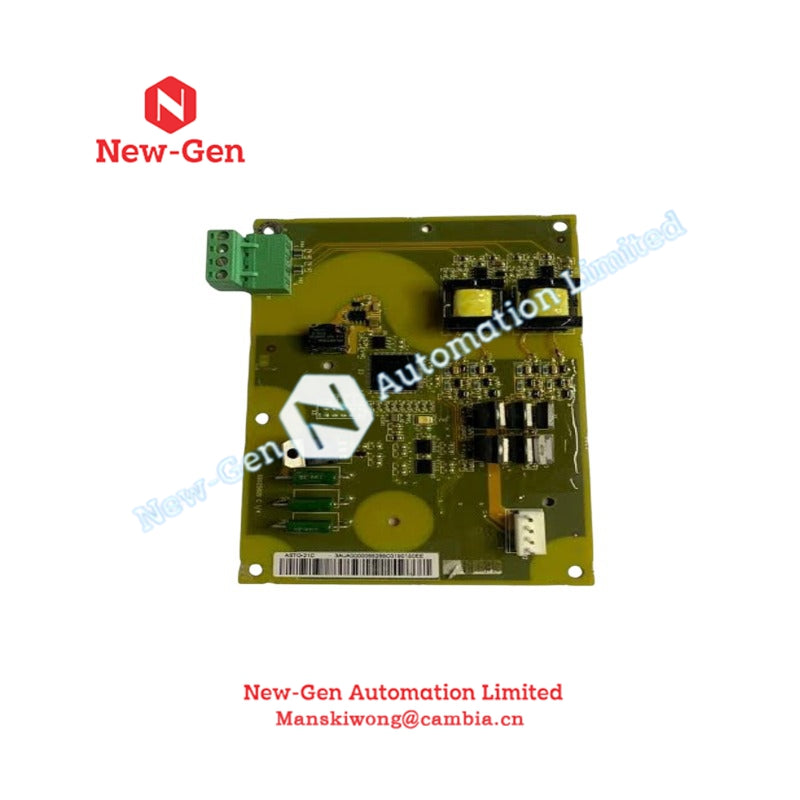

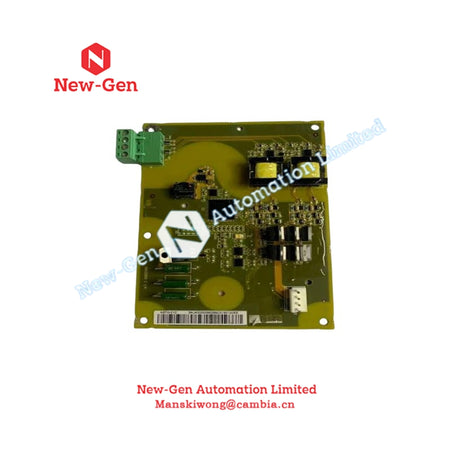

Safety Interface Board ABB ASTO-21C

Product Description

Configured for Safe Torque Off (STO) execution in ABB ACS800 drive control architecture, the ABB ASTO-21C (ASTO-21C) safety interface board provides direct electrical shutdown control of inverter gate drive signals within R7i to R8i frame power modules. The ABB ASTO-21C implements dual-channel STO logic that removes torque-generating capability by inhibiting semiconductor switching states without disconnecting main power rails.

Suffix Breakdown & Model Matrix

No official suffix segmentation or variant encoding is defined for ASTO-21C beyond its fixed ordering code 3AUA0000065265. Functional behavior is defined by STO Option +Q967 integration within ACS800 system configuration parameters.

Hardware Specifications

ABB Drive Control & Backplane Integration Characteristics

The ABB ASTO-21C integrates into ACS800 drive control logic where backplane communication timing and firmware compatibility govern STO activation latency and fault response sequencing. Within ABB drive architectures, deterministic internal control routing ensures STO trigger propagation is synchronized with inverter gate blocking signals, preventing unintended pulse-width modulation output.

In frame-level integration (R7i to R8i), control board interaction relies on structured I/O density scaling and firmware flash compatibility alignment between safety option boards and main control firmware. This ensures consistent STO state enforcement across varying inverter load conditions and switching frequencies.

Frequently Asked Questions

Q: Does ASTO-21C support hot-swap replacement in ACS800 systems?
A: No hot-swap operation is supported. Power removal is required prior to board insertion or extraction due to STO control line direct coupling to gate driver inhibition circuits.

Q: What is the failure behavior of STO channels under voltage loss?
A: Both STO channels default to torque-inhibited state when control voltage falls below valid logic threshold (< 5 VDC), forcing inverter output switching inhibition.

Q: Can ASTO-21C operate with 115 VAC or 230 VAC control input?
A: No. Application of AC voltage will damage the board. Only 24 VDC +/-10 percent is permitted for control logic supply.

Field Installation Guidelines

STO input wiring shall use shielded twisted pair conductors with minimum cross-section of 0.5 mm2 (20 AWG). Shield termination shall be bonded at control cabinet earth reference point to reduce common-mode noise coupling into STO logic lines. Cable routing shall maintain separation from inverter output motor leads to avoid induced transient coupling.

Ensure both STO channels are wired as independent safety paths. Do not bridge channel inputs. Maintain verified 24 VDC supply stability before commissioning. All installation and commissioning shall be performed with drive main power isolated and DC link discharged.

Other Attributes

• Series: Advant DCS/800xA
• Country of Origin:  Germany/Sweden/Finland
• Lead Time: In Stock, 2 Working Days
