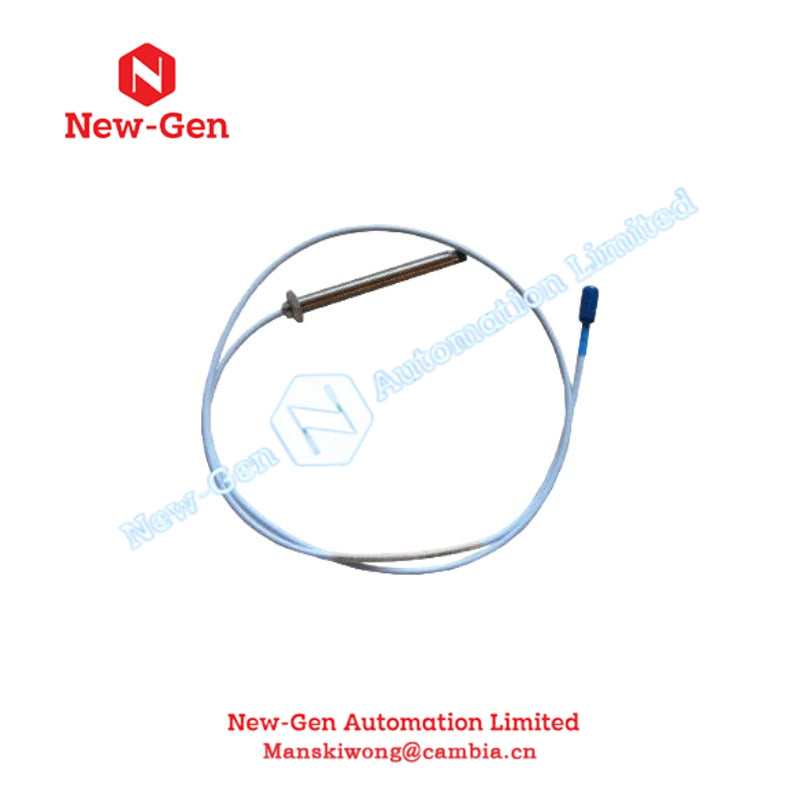

330103-05-09-10-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe

Product Description

The Bently Nevada 330103-05-09-10-02-CN, also cataloged as the 330103 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for shaft displacement measurement within Bently Nevada TSI machinery monitoring systems. The probe converts target distance changes into eddy-current signals for Proximitor Sensor processing.

Hardware Specifications

Eddy-Current Measurement and Rotor Dynamics Monitoring

The 330103-05-09-10-02-CN uses an eddy-current sensing element to detect the relative position between the probe tip and the rotating shaft surface. Therefore, the probe provides proportional displacement information for vibration channels, axial position channels, and rotor position monitoring loops.

The system requires gap voltage validation during commissioning. Bently Nevada TSI installations typically verify probe operating clearance through Proximitor Sensor output, with -10 VDC used as a standard reference target for correct probe gap adjustment.

Additionally, the 3300 XL probe design supports rotor dynamics analysis by providing continuous shaft motion feedback. The miniature coaxial ClickLoc connection maintains signal integrity while reducing installation time in machinery protection systems.

Frequently Asked Questions

Q: What type of signal does the 330103-05-09-10-02-CN generate?
A: The probe generates an eddy-current measurement signal that the compatible Proximitor Sensor converts into a proportional voltage output representing shaft displacement.

Q: Which hardware is required to operate this proximity probe?
A: The probe requires a compatible Bently Nevada 3300 XL Proximitor Sensor and monitoring channel to provide excitation, signal conversion, and system interface functions.

Q: How is the probe gap verified during installation?
A: The installation team verifies the probe gap through the Proximitor Sensor gap voltage output and confirms the measurement range before commissioning.

Field Installation Guidelines

1. Install the probe using the M10 x 1 mounting thread according to the machine manufacturer's mechanical drawing.
2. Maintain correct probe-to-target clearance before performing electrical calibration.
3. Route the coaxial cable away from high-voltage sources and strong electromagnetic interference paths.
4. Confirm ClickLoc connector engagement and inspect the cable shield condition before startup.
5. Validate the vibration channel response and gap voltage after connection to the monitoring system.

Other Attributes

• Series: 24765 and 135613 Case Expansion Transducer Systems
• Country of Origin: USA
• Lead Time: In Stock, 2 Working Days
